LORA Module STM32WLE5 based (RC-WLE5-868-HA)
LORA Wireless module STM32WLE5Jx based
RC-WLE5-868-HA is an ultra low power long range device designed by RadioControlli.
The module is based on STM32WLE5Jx device from STMicroelectronics. Multiprotocol LPWAN 32bit Arm®Cortex® M4 MCUs, LoRa®, (G)FSK, (G)MSK, BPSK .
The main applications of this module are Internet of Things devices and wireless sensor networks , especially battery powered low power consumption long range.
Operative Frequency bands : 868MHz.

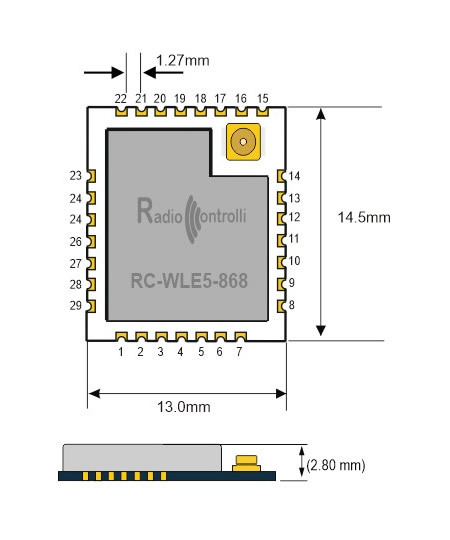

Ready for use SMD mounting (13 x 14.5mm), Metal shield.
For more information and details, please refer to the STM32WLE5J datasheet (www.st.com).
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
LORA Wireless module STM32WLE5Jx based
RC-WLE5-868-HA is an ultra low power long range device designed by RadioControlli.
The module is based on STM32WLE5Jx device from STMicroelectronics. Multiprotocol LPWAN 32bit Arm®Cortex® M4 MCUs, LoRa®, (G)FSK, (G)MSK, BPSK .
The main applications of this module are Internet of Things devices and wireless sensor networks , especially battery powered low power consumption long range.
Operative Frequency bands : 868MHz.
Ready for use SMD mounting (13 x 14.5mm), Metal shield.
For more information and details, please refer to the STM32WLE5J datasheet (www.st.com).
We provide 2 versions:
1) Standard version with UFL connector You can use the UFL connector where you can directly connect the antenna. The RF output signal is also present on a 50 ohm pin (pin 15) in case you want to create your own antenna project on your pcb.
2) Version with helical antenna (full version) RC-WLE5-868-HA
Data sheet
- Frequency
- 868MHz
- Modulation
- LoRa
- Supply Voltage
- 2.5 ÷ 3.6mA
- Consumption
- 5 / 120mA
- Dimension
- 14.5 x 13.0mm
- RF Power Output
- 18.5dBm
- Sensitivity
- -140dBm
