RC-SPIRIT2-433

€10.00
Tax excluded

RC-SPIRIT2-433 module is based on STMicroelectronics S2-LP transceiver.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.
For more information and details, please refer to the S2-LP datasheet (www.st.com).

     datasheet.jpg                     Catalog.jpg


Volume discounts

Quantity Unit discount You Save
10 10% €10.00
20 20% €40.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

sub 1GHz Multichannels Radio Transceiver S2LP based

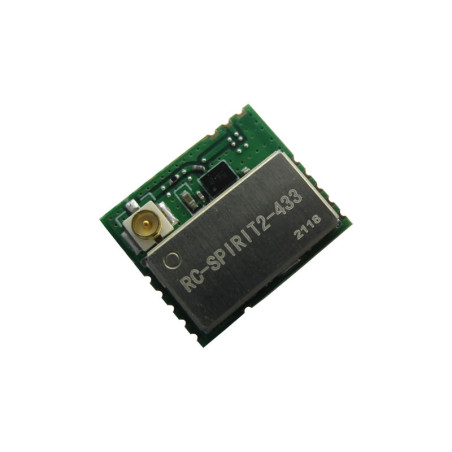

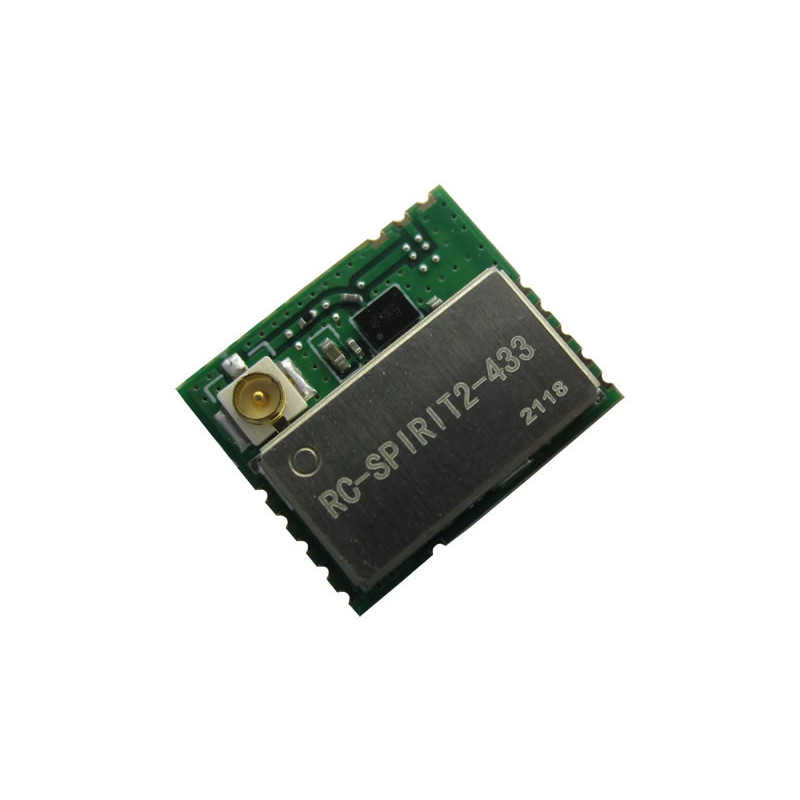

RC-SPIRIT2-433 module is based on STMicroelectronics S2-LP transceiver.

Pin to pin compatible with the SPSGRF family modules manufactured from STMicroelectronics.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.

RF Balun used : BAL-SPI2-02D3

Ready for use SMD mounting (11.5 x 13.5mm) - Metal shield.
Operative Frequency Band: 433 MHz.

For more information and details, please refer to the S2-LP datasheet (www.st.com).

Using this module, it will be possible to easily update a product designed with Spirit1 technology (SPSGRF modules) with the new S2-LP device.

ScreenHunter_1615_Apr__29_14_55_jpg

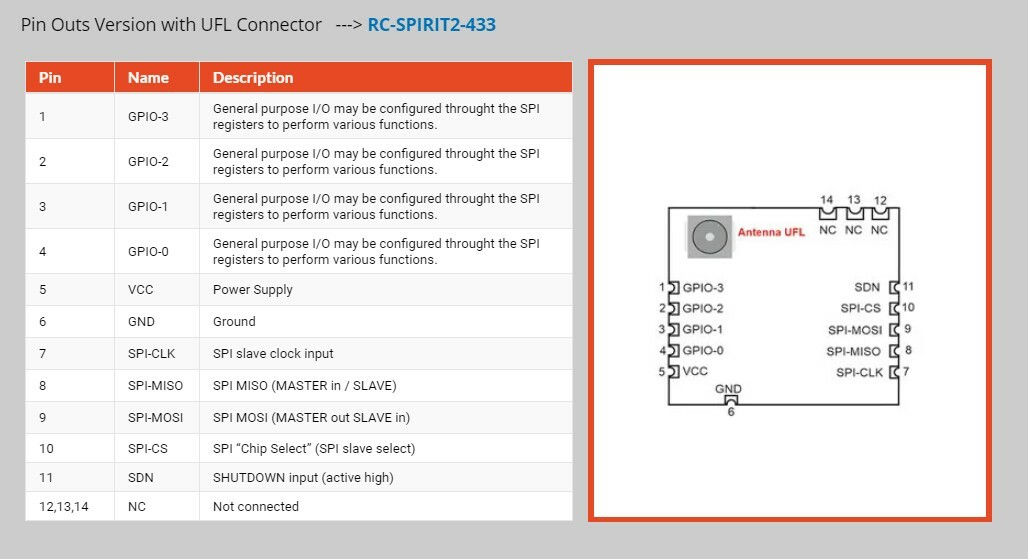

ScreenHunter_1618_Apr__29_15_05_jpg

ScreenHunter_1617_Apr__29_14_56_jpg



200 Items

Data sheet

Frequency
433MHz
Modulation
ASK / FSK
Supply Voltage
1.8 - 3.6 Volt
Consumption
7.2/20mA
Dimension
22 x 15.0mm
RF Power Output
-30dBm÷16dBm
Sensitivity
-128dBm
