Lora Radio Modem AT Command (Lora Transparent Transmission Protocol)

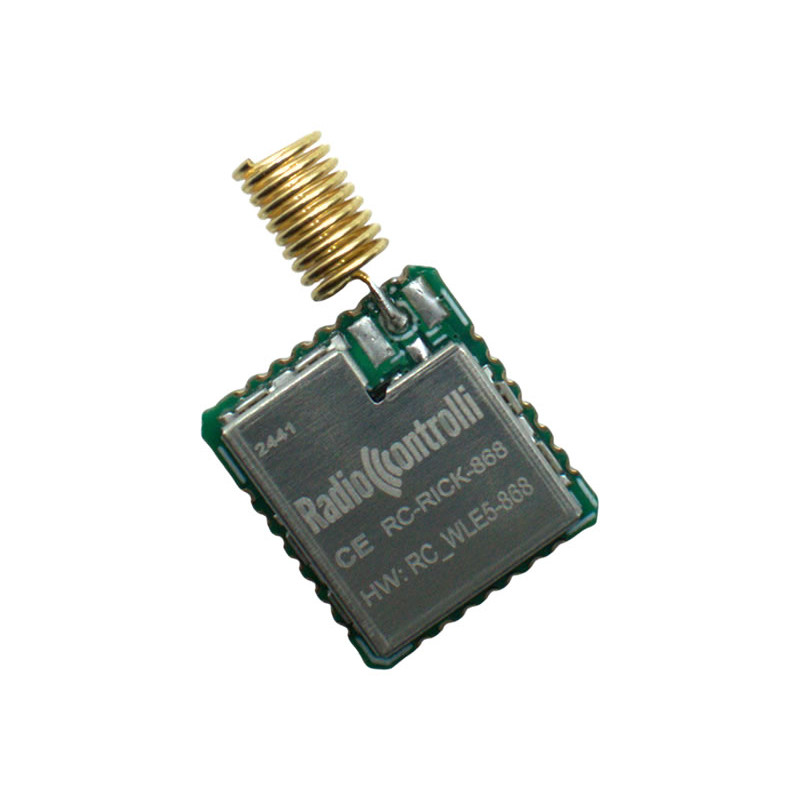

RC-RICK-868 is a radio modem with UART interface usable with AT commands for long distance communication with LoRa
modulation (LoRa Transparent Transmission Protocol).
Working into European bandwidth : 868MHz
The hardware is based on the module RC-WLE5-868 designed by RadioControlli (STM32WLE5JC based).
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lora Radio Modem AT Command (Lora Transparent Transmission Protocol)
RC-RICK-868 is a radio modem with UART interface usable with AT commands for long distance communication with LoRa
modulation (LoRa Transparent Transmission Protocol).
Working into European bandwidth : 868MHz
The hardware is based on the module RC-WLE5-868 designed by RadioControlli (STM32WLE5JC based).
To test and verify this radio modem application it is possible to download the software on the following hyperlink : Applicazione radio modem LoRa AT command
DEMO VIDEO
50 Items
Data sheet
- Frequency
- 868MHz
- Modulation
- LoRa
- Supply Voltage
- 2.5 - 3.6 Volt
- Consumption
- 5/120mA
- Dimension
- 14.5 x 13mm
- RF Power Output
- 22.0dBm
- Sensitivity
- -140dBm
