USB Dongle LORA module STM32WLE5JC
€49.00
Tax excluded
USB Dongle LORA module STM32WLE5JC
This USB dongle has been designed to allow you to develop your own application on the RC-WLE5-XXX LORA module.

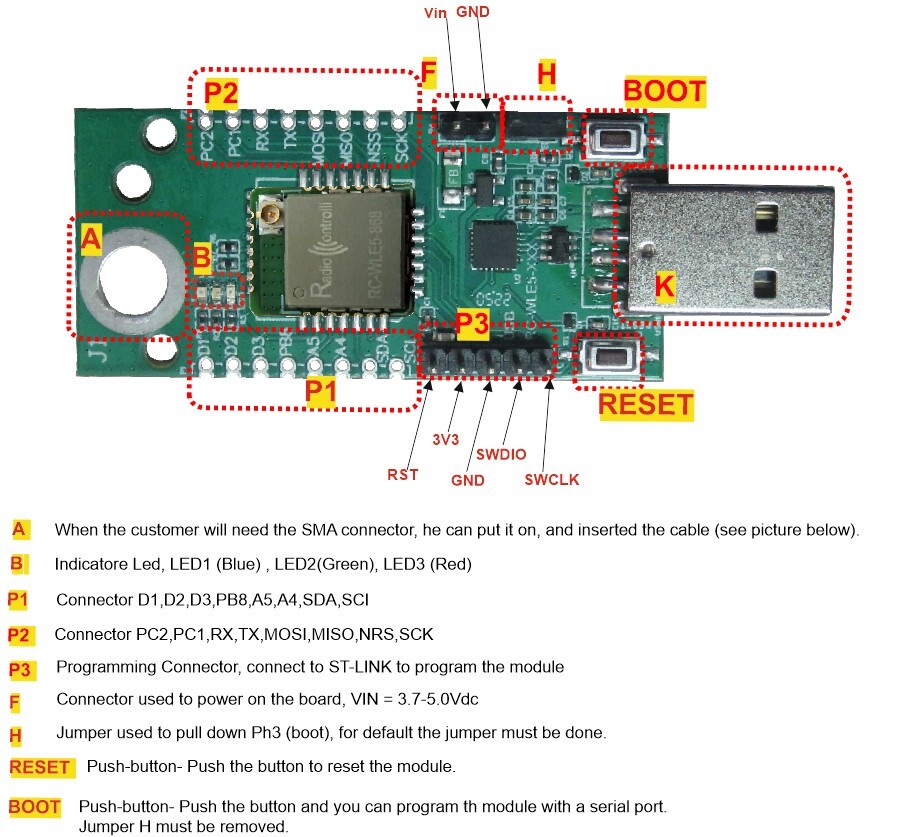

The evaluation board is composed from :
- Evaluation board with USB connector including the RC-WLE5-868 module already soldered onboard
- Cable SMA-UFL
- Antenna 868MHz
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
USB Dongle LORA module STM32WLE5JC
This USB dongle has been designed to allow you to develop your own application on the RC-WLE5-XXX LORA module.
The evaluation board is composed from :
- Evaluation board with USB connector including the RC-WLE5-868 module already soldered onboard
- Cable SMA-UFL
- Antenna 868MHz
10 Items
Data sheet
- Frequency
- 868MHz
- Modulation
- LoRa
- Supply Voltage
- 2.5 - 3.6 Volt
- Consumption
- 5/120mA
- Dimension
- 14.5 x 13mm
- RF Power Output
- 18.5dBm
- Sensitivity
- -140dBm
