RC-SPIRIT2-915
search
  • RC-SPIRIT2-915

RC-SPIRIT2-915

€10.00
Tax excluded

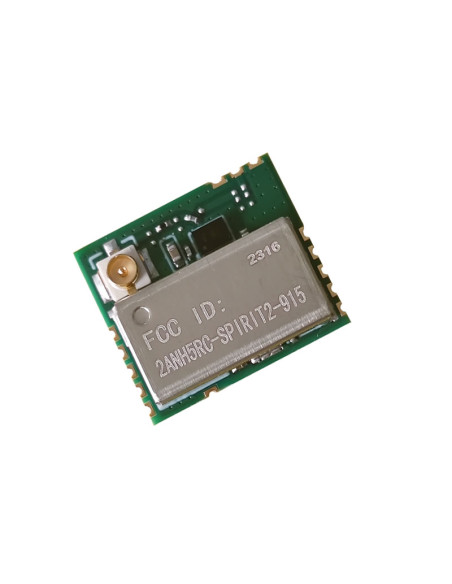

RC-SPIRIT2-915 module is based on STMicroelectronics S2-LP transceiver.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.
For more information and details, please refer to the S2-LP datasheet (www.st.com).

SPPSGRFC module.

     datasheet.jpg                     Catalog.jpg


Volume discounts

Quantity Unit discount You Save
10 10% €10.00
20 20% €40.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

sub 1GHz Multichannels Radio Transceiver S2LP based

RC-SPIRIT2-915 module is based on STMicroelectronics S2-LP transceiver.

Pin to pin compatible with the SPSGRF family modules manufactured from STMicroelectronics.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.

RF Balun used : BAL-SPI2-01D3

Ready for use SMD mounting (11.5 x 13.5mm) - Metal shield.
Operative Frequency Band: 868 MHz.

For more information and details, please refer to the S2-LP datasheet (www.st.com).

Using this module, it will be possible to easily update a product designed with Spirit1 technology (SPSGRF modules) with the new S2-LP device.

ScreenHunter_1615_Apr__29_14_55_jpg

ScreenHunter_1616_Apr__29_14_56_jpg

ScreenHunter_1617_Apr__29_14_56_jpg



100 Items

Data sheet

Frequency
915MHz
Modulation
ASK / FSK
Supply Voltage
1.8 - 3.6 Volt
Consumption
7.2/20mA
Dimension
22 x 15.0mm
RF Power Output
-30dBm÷16dBm
Sensitivity
-128dBm
