RC-SPIRIT2-433-NA module is based on STMicroelectronics S2-LP transceiver.
This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.
For more information and details, please refer to the S2-LP datasheet (www.st.com).
 |
 |
|
RC-SPIRIT2-433-NA module is based on STMicroelectronics S2-LP transceiver.
Pin to pin compatible with the SPSGRF family modules manufactured from STMicroelectronics.
This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.
RF Balun used : BAL-SPI2-02D3

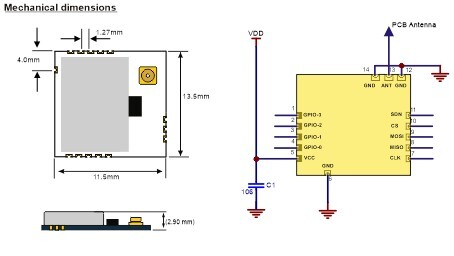

Ready for use SMD mounting (11.5 x 13.5mm) - Metal shield.
Operative Frequency Band: 433 MHz.
For more information and details, please refer to the S2-LP datasheet (www.st.com).
Using this module, it will be possible to easily update a product designed with Spirit1 technology (SPSGRF modules) with the new S2-LP device.
