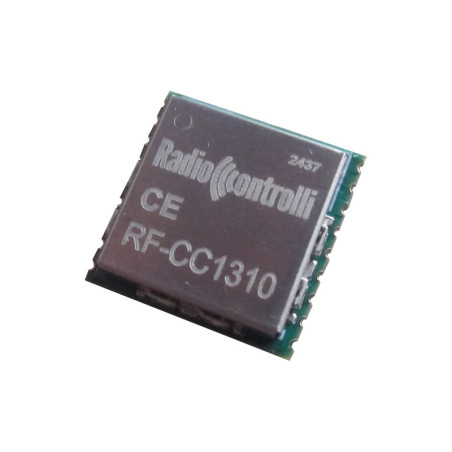

RF-CC1310 Miniaturized version
€6.00
Tax excluded
Ultra Low Power sub 1GHz Multichannel Radio Transceiver
The RF-CC1310 module is based on Texas Instruments CC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48MHz Cortex M3 nicrocontrller in a platform supporting multiple physical layers and RF standard.
MINIATURIZED VERSION
 |
 |
|
Product customization
Don't forget to save your customization to be able to add to cart
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:
The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA.
The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.The RadioControlli transceiver named RC-CC1310-868 (CC1310 TI based), this module is ideal for use in IOT applications for the following reasons:
Ultra low power consumption, the consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).
Long range operations, the sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.
Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield
This module is CE CERTIFIED (Radio Equipment Directive 2014/53/EU)
RF Power Output 50ohm (programmable parameter)-10+14dBm
RF Sensitivity long range mode 625bps-124dBmOperating Temperature range-30+75°C
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.8 | 3.0 | 3.80 | Volt |
| Supply Current RX mode | 5.5 | mA | ||
| Supply Current TX mode -----> +10dBm | 13.4 | mA | ||
| Supply Current TX mode -----> +14dBm | 23.5 | mA | ||
| Supply Current Standby Mode | 0,7 | µA | ||
| Supply Current Shut Down Mode | 185 | nA | ||
| Operative Frequency | 868/915 | MHz | ||
| Frequency error | ±10 | ppm | ||
| RF Sensitivity 50kbps | -110 | dBm | ||
| Data Rate (programmable parameter) | 0,01 | 4 | Mbit/s |
200 Items
Data sheet
- Frequency
- 868MHz - 915MHz
- Supply Voltage
- 1.8 ÷ 3.8Volt
- Consumption
- 5.5mA
- Dimension
- 13x13mm
- RF Power Output
- +14dBm
- Sensitivity
- -124dBm
