Dual band sub 1GHz and 2.4 GH
z Multichannels Radio Transceiver +20dBm

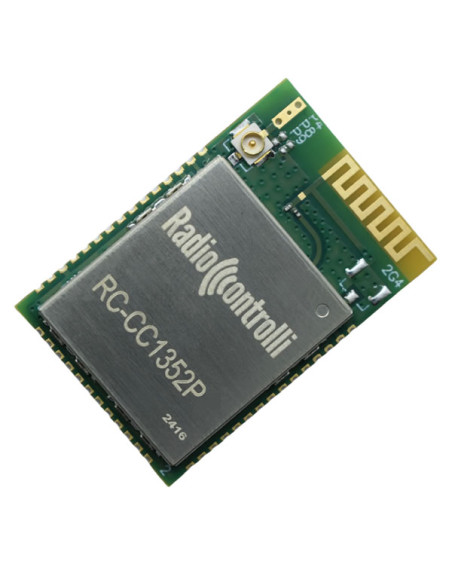

The RC-CC1352P-XXX module is based on Texas Instruments CC1352R component. The CC1352P device is a multiprotocol Sub-1 and 2.4-GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Thread,Zigbee®, KNX RF,Wi-SUN®, Bluetooth® 5 low energy, and proprietarysystems.
In future will be available N.2 Versions :
- RC-CC1352P-868 Freq. : 868MHz
- RC-CC1352P-915 Freq. : 915MHz
The CC1352P device is a member of the CC26xx and CC13xx family of cost-effective, ultra-low power, 2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller (MCU) current, in addition to sub-µA sleep current with up to 80KB of RAM retention, provide excellent battery lifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.
The CC1352P device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Arm® Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and great flexibility. The low power consumption of the CC1352P device does not come at the expense of RF performance; the CC1352P device has excellent sensitivity and robustness (selectivity and blocking performance).
|
Sub 1GHz Parameters
|
MIN |
TYP |
MAX |
UNIT |
| Supply Voltage |
1.8 |
3.0 |
3.80 |
Volt |
| Supply Current RX mode |
|
8.5 |
|
mA |
| |
|
|
|
|
| Supply Current TX mode |
|
66 |
|
mA |
| Supply Current Standby Mode |
|
0.1 |
|
µA |
| Operative Frequency |
|
868/915 |
|
MHz |
| RF Power Output 50ohm |
|
|
+18 |
dBm |
| RF Sensitivity 50kbps |
|
-110 |
|
dBm |
| RF Sensitivity long range mode 2.5kbps |
|
-122 |
|
dBm |
| Data Rate (programmable parameter) |
0,01 |
|
4 |
Mbit/s |
| Operating Temperature range |
-30 |
|
75 |
°C
|
|
|
2.4GHz Parameters
|
MIN |
TYP |
MAX |
UNIT |
| Supply Voltage |
1.8 |
3.0 |
3.80 |
Volt |
| Supply Current RX mode |
|
8.5 |
|
mA |
| Supply Current TX mode |
|
13 |
|
mA |
| Supply Current Standby Mode |
|
0.1 |
|
µA |
| RF TX Power Output |
|
|
+3 |
dBm
|
|
For more information and details, please refer to the CC1352P Texas Instruments datasheet.
