RC-CC1314R-H
€12.00
Tax excluded
Ultra Low Power sub 1GHz Multichannel Radio Transceiver

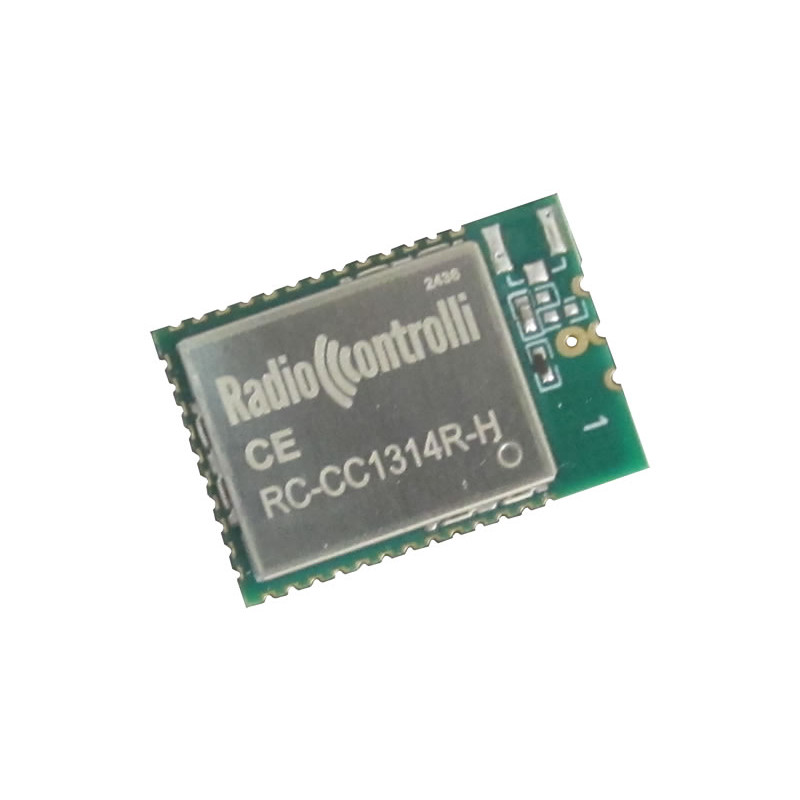

The RC-CC1314R-H module is based on Texas Instruments CC1314R106T0RGZ component. This device combines a flexible, very low power RF transceiver with a powerfu
l 48 MHz ARM Cortex M4F CPU in a platform supporting multiple physical layers and RFstandard. This device is pin to pin compatible with the module RC-CC1310-XXX and RC-CC1312R-XXX.
 |
 |
|
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
The RC-CC1314R module is based on Texas Instruments CC1314R106T0RGZ component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz ARM Cortex M33 CPU in a platform supporting multiple physical layers and RF standard. This device is pin to pi compatible with the module RC-CC1310-XXX and RC-CC1312R-XXX.
Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield
RF Power Output 50ohm (programmable parameter)-10+14dBm
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.8 | 3.0 | 3.60 | Volt |
| Supply Current RX mode | 5.8 | mA | ||
| Supply Current TX mode -----> +10dBm | 13.4 | mA | ||
| Supply Current TX mode -----> +14dBm | 24.90 | mA | ||
| Supply Current Standby Mode | 0,85 | µA | ||
| Supply Current Shut Down Mode | 150 | nA | ||
| Operative Frequency | 868/915 | MHz | ||
| Frequency error | ±10 | ppm | ||
| RF Sensitivity 50kbps | -110 | dBm | ||
| Long range RF Sensitivity (5kbps) | -121 | dBm | ||
| RF Output Power | -10 | +14 | dBm | |
| Data rate | 0.01 | 4.0 | Mbit/s | |
| Operative Range temperature | -30 | 75 | °C |
100 Items
Data sheet
- Frequency
- 868MHz/915MHz
- Modulation
- ASK / FSK
- Supply Voltage
- 1.8 - 3.8 Volt
- Consumption
- 5.5/13.4mA
- Dimension
- 22 x 15.0mm
- RF Power Output
- -10dBm÷14dBm
- Sensitivity
- -124dBm
