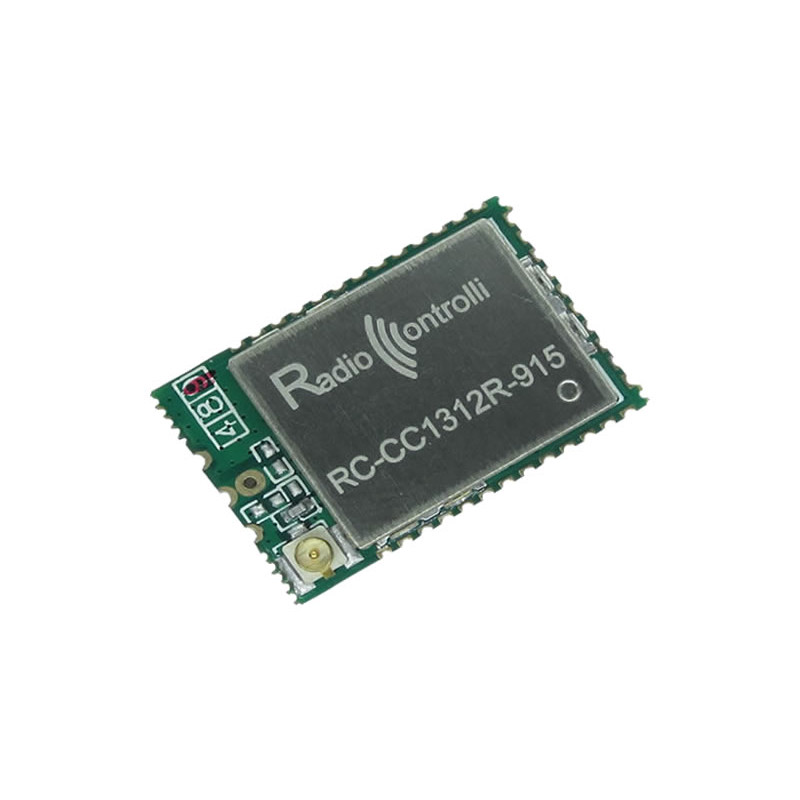

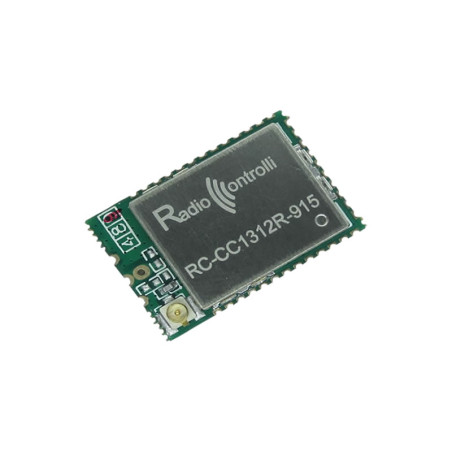

RC-CC1312R-915-EV
€15.00
Tax excluded
Ultra Low Power sub 1GHz Multichannels Radio Transceiver with adapter for SMART RF 06
To make immediate usable the RC-CC1312R-915 module with Texas Instruments development systems SMART RF06 has been realized this adapter.
The RC-CC1312R-915 module is based on Texas Instruments CC1312R1F3RGZ component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz Cortex M4F microcontroller in a platform supporting multiple physical layers and RF standard.
Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:
The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA. The consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).
The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.
The sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.
Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
The RC-CC1312R-915 module is based on Texas Instruments CC1312R1F3RGZ component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz ARM Cortex M4F CPU in a platform supporting multiple physical layers and RF standard. This device is pin to pi compatible with the module RC-CC1310-XXX.
Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield
This module is CE CERTIFIED.
RF Power Output 50ohm (programmable parameter)-10+14dBm
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.8 | 3.0 | 3.60 | Volt |
| Supply Current RX mode | 5.8 | mA | ||
| Supply Current TX mode -----> +10dBm | 13.4 | mA | ||
| Supply Current TX mode -----> +14dBm | 24.90 | mA | ||
| Supply Current Standby Mode | 0,85 | µA | ||
| Supply Current Shut Down Mode | 150 | nA | ||
| Operative Frequency | 915 | MHz | ||
| Frequency error | ±10 | ppm | ||
| RF Sensitivity 50kbps | -110 | dBm | ||
| Long range RF Sensitivity (5kbps) | -121 | dBm | ||
| RF Output Power | -10 | +14 | dBm | |
| Data rate | 0.01 | 4.0 | Mbit/s | |
| Operative Range temperature | -30 | 75 | °C |
6 Items
Data sheet
- Frequency
- 915MHz
- Modulation
- ASK / FSK
- Supply Voltage
- 1.8 - 3.8 Volt
- Consumption
- 5.5/13.4mA
- Dimension
- 22 x 15.0mm
- RF Power Output
- -10dBm÷14dBm
- Sensitivity
- -124dBm
