RC-CC1310-434-EV
10,00 €
Tasse escluse
Ultra Low Power sub 1GHz Multichannel Radio Transceiver
The RC-CC1310-434 module is based on Texas Instruments CC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48MHz Cortex M3 nicrocontrller in a platform supporting multiple physical layers and RF standard.

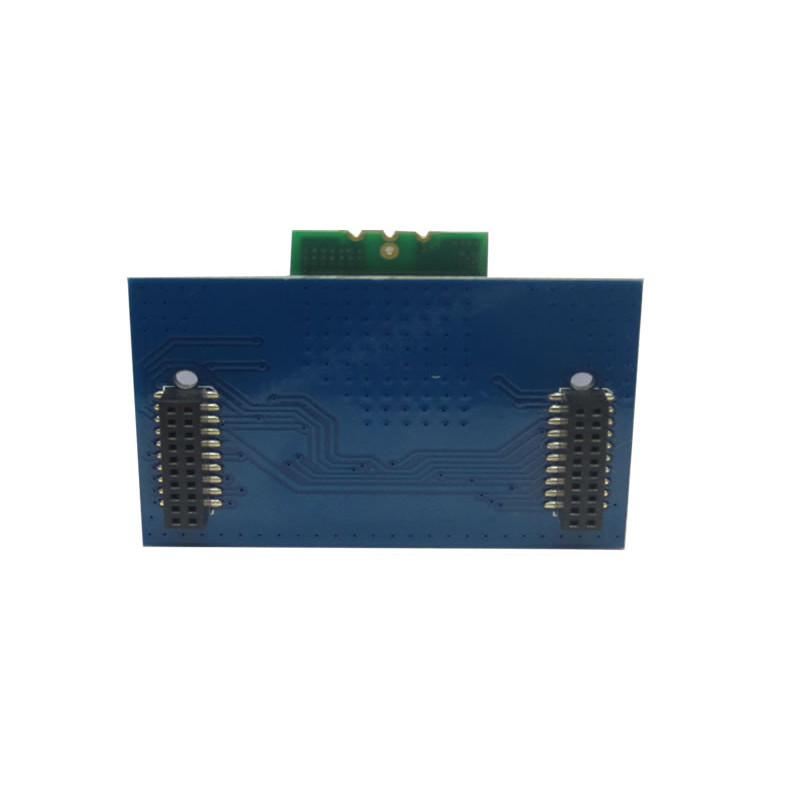

To make immediate usable the RC-CC1310-434 module with Texas Instruments Evaluation kit systems has been realized and adpter board, the product denominated RC-CC1310-434-EV include the adapter.
 |
 |
|
Sicurezza del pagamento (direttamente su PayPal.com)
Consegna entro 3 giorni lavorativi
Cambio e Reso accettato (contattaci per approfondimenti)
Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:
The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA.
The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.The RadioControlli transceiver named RC-CC1310-434 (CC1310 TI based), this module is ideal for use in IOT applications for the following reasons:
Ultra low power consumption, the consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).
Long range operations, the sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.
Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield
This module is CE CERTIFIED (Radio Equipment Directive 2014/53/EU)
RF Power Output 50ohm (programmable parameter)-10+14dBm
RF Sensitivity long range mode 625bps-124dBmOperating Temperature range-30+75°C
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.8 | 3.0 | 3.80 | Volt |
| Supply Current RX mode | 5.5 | mA | ||
| Supply Current TX mode -----> +10dBm | 13.4 | mA | ||
| Supply Current TX mode -----> +14dBm | 23.5 | mA | ||
| Supply Current Standby Mode | 0,7 | µA | ||
| Supply Current Shut Down Mode | 185 | nA | ||
| Operative Frequency | 434 | MHz | ||
| Frequency error | ±10 | ppm | ||
| RF Sensitivity 50kbps | -110 | dBm | ||
| Data Rate (programmable parameter) | 0,01 | 4 | Mbit/s |
6 Articoli
Scheda tecnica
- Frequenza
- 433MHz
- Tipo di Modulazione
- ASK / FSK
- Tensione di Alimentazione
- 1.8 - 3.8 Volt
- Assorbimento
- 5.5/13.4mA
- Dimensioni meccaniche
- 22 x 15mm
- Potenza RF
- -10dBm ÷ +14dBm
- Sensibilità
- -124dBm
