RC-CC1310-868

6,00 €
Tasse escluse

Ultra Low Power sub 1GHz Multichannel Radio Transceiver

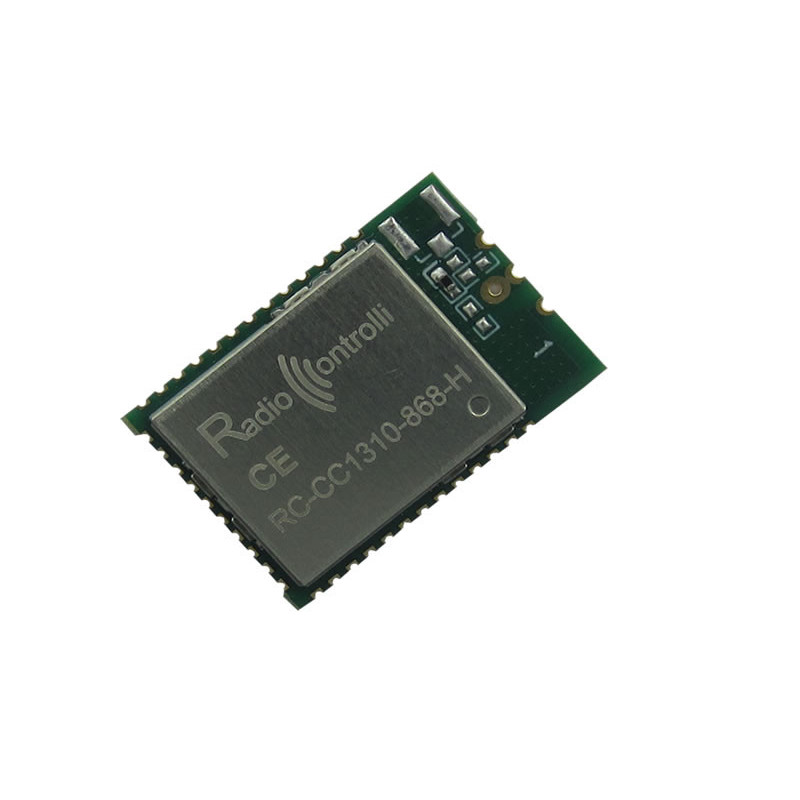

The RC-CC1310-868 module is based on Texas Instruments CC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48MHz Cortex M3 nicrocontrller in a platform supporting multiple physical layers and RF standard.

     datasheet.jpg                     Catalog.jpg


Personalizzazione del prodotto

Non dimenticare di salvare la tua personalizzazione per poter riempire il carrello
  • Max. 250 caratteri

Sconti sul volume

Quantità Sconto unità Salva
10 10% 6,00 €
20 20% 24,00 €
Quantità
In stock

La quantità minima ordinabile per questo prodotto è 2.



Sicurezza del pagamento (direttamente su PayPal.com)



Consegna entro 3 giorni lavorativi



Cambio e Reso accettato (contattaci per approfondimenti)

Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:

The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA.

The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.The RadioControlli transceiver named RC-CC1310-868 (CC1310 TI based), this module is ideal for use in IOT applications for the following reasons:

Ultra low power consumption, the consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).

Long range operations, the sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.

Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield

This module is CE CERTIFIED (Radio Equipment Directive 2014/53/EU)

RF Power Output 50ohm (programmable parameter)-10+14dBm

RF Sensitivity long range mode 625bps-124dBmOperating Temperature range-30+75°C

Technical Characteristics MIN TYP MAX UNIT
Supply Voltage 1.8 3.0 3.80 Volt
Supply Current RX mode 5.5 mA
Supply Current TX mode -----> +10dBm 13.4 mA
Supply Current TX mode -----> +14dBm 23.5 mA
Supply Current Standby Mode 0,7 µA
Supply Current Shut Down Mode 185 nA
Operative Frequency 868 MHz
Frequency error ±10 ppm
RF Sensitivity 50kbps -110 dBm
Data Rate (programmable parameter) 0,01 4 Mbit/s



100 Articoli

Scheda tecnica

Frequenza
868MHz
Tensione di Alimentazione
1.8 ÷ 3.8Volt
Assorbimento
5.5mA
Dimensioni meccaniche
15 x 22mm
Potenza RF
+14dBm
Sensibilità
-124dBm
