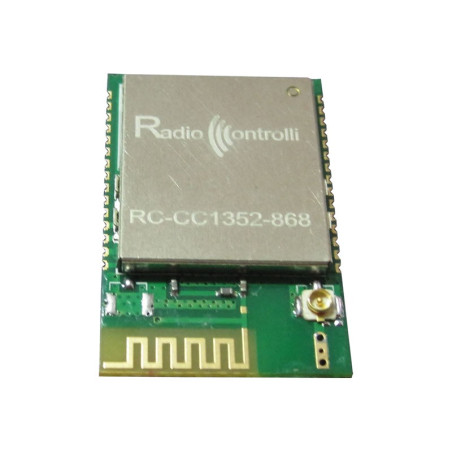

RC-CC1352-868

16,00 €

Dual band sub 1GHz and 2.4GHz Multichannels Radio Transceiver

The RC-CC1352-XXX module is based on Texas Instruments CC1352R component. The CC1352R device is a multiprotocol Sub-1 and 2.4-GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Thread,Zigbee®, KNX RF,Wi-SUN®, Bluetooth® 5 low energy, and proprietarysystems.

     datasheet.jpg                     Catalog.jpg


Sconti sul volume

Quantità Sconto unità Salva
10 10% 16,00 €
20 20% 64,00 €
Quantità
In stock

La quantità minima ordinabile per questo prodotto è 2.



Sicurezza del pagamento (direttamente su PayPal.com)



Consegna entro 3 giorni lavorativi



Cambio e Reso accettato (contattaci per approfondimenti)

Dual band sub 1GHz and 2.4GHz Multichannels Radio Transceiver

The RC-CC1352-XXX module is based on Texas Instruments CC1352R component. The CC1352R device is a multiprotocol Sub-1 and 2.4-GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Thread,Zigbee®, KNX RF,Wi-SUN®, Bluetooth® 5 low energy, and proprietarysystems.
In future will be available N.3 Versions :
- RC-CC1352-434      Freq. : 433MHz
- RC-CC1352-868      Freq. : 868MHz  (available version)
- RC-CC1352-915      Freq. : 915MHz

The CC1352R device is a member of the CC26xx and CC13xx family of cost-effective, ultra-low power, 2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller (MCU) current, in addition to sub-µA sleep current with up to 80KB of RAM retention, provide excellent battery lifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.

The CC1352R device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Arm® Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and great flexibility. The low power consumption of the CC1352R device does not come at the expense of RF performance; the CC1352R device has excellent sensitivity and robustness (selectivity and blocking performance).

Sub 1GHz Parameters

MIN TYP MAX UNIT
Supply Voltage  1.8  3.0 3.80 Volt
 Supply Current RX mode   8.1    mA
 Supply Current TX mode   -----> +10dBm   13.4     mA
 Supply Current TX mode   -----> +14dBm     24    mA
 Supply Current Standby Mode    0.1   µA
 Operative Frequency   434/868/915   MHz
  RF Power Output 50ohm       +14 dBm
 RF Sensitivity 50kbps   -110   dBm
RF Sensitivity long range mode 2.5kbps    -122    dBm
 Data Rate (programmable parameter) 0,01    Mbit/s
 Operating Temperature range -30     75 °C

 2.4GHz Parameters

MIN TYP MAX UNIT
Supply Voltage  1.8  3.0 3.80 Volt
 Supply Current RX mode   8.0    mA
 Supply Current TX mode    10     mA
 Supply Current Standby Mode    0.1   µA
  RF TX Power Output       +5 dBm

 For more information and details, please refer to the CC1352R Texas Instruments datasheet.

100 Articoli

Scheda tecnica

Frequenza
868MHz / 2.4GHz
Tipo di Modulazione
ASK / FSK
Tensione di Alimentazione
1.8 - 3.8 Volt
Assorbimento
8.1/13.4mA
Dimensioni meccaniche
29.86 x 19.98mm
Potenza RF
+14dBm
Sensibilità
-122dBm
