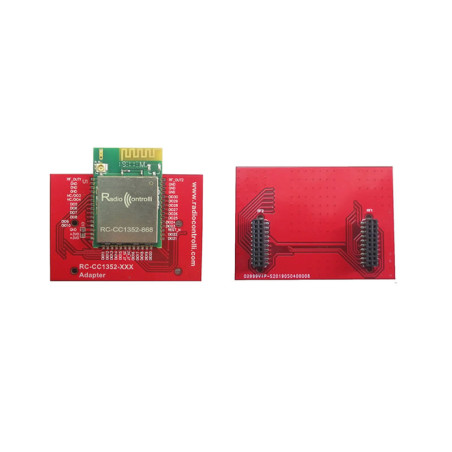

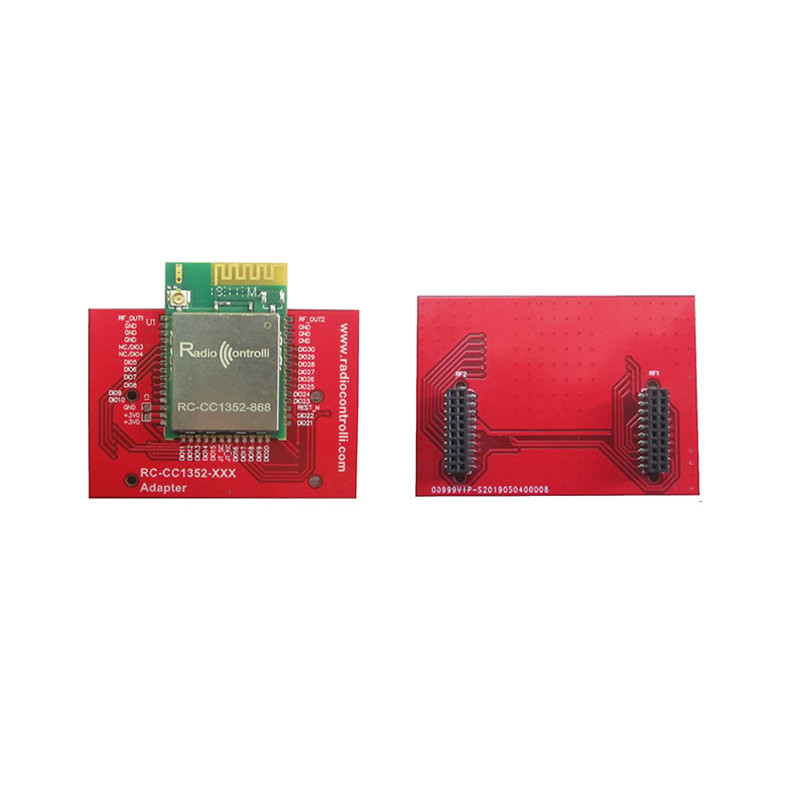

RC-CC1352-915-EV

The RC-CC1352-XXX module is based on Texas Instruments CC1352R component. The CC1352R device is a multiprotocol Sub-1 and 2.4-GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Thread,Zigbee®, KNX RF,Wi-SUN®, Bluetooth® 5 low energy, and proprietarysystems.

In future will be available N.3 Versions :

- RC-CC1352-915      Freq. : 915MHz



The CC1352R device is a member of the CC26xx and CC13xx family of cost-effective, ultra-low power, 2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller (MCU) current, in addition to sub-µA sleep current with up to 80KB of RAM retention, provide excellent battery lifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.

The CC1352R device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Arm® Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and great flexibility. The low power consumption of the CC1352R device does not come at the expense of RF performance; the CC1352R device has excellent sensitivity and robustness (selectivity and blocking performance).

Sub 1GHz Parameters MIN TYP MAX UNIT Supply Voltage  1.8  3.0 3.80 Volt  Supply Current RX mode   8.1    mA  Supply Current TX mode   -----> +10dBm   13.4     mA  Supply Current TX mode   -----> +14dBm     24    mA  Supply Current Standby Mode    0.1   µA  Operative Frequency   434/868/915   MHz   RF Power Output 50ohm       +14 dBm  RF Sensitivity 50kbps   -110   dBm RF Sensitivity long range mode 2.5kbps    -122    dBm  Data Rate (programmable parameter) 0,01    4  Mbit/s  Operating Temperature range -30     75 °C

2.4GHz Parameters MIN TYP MAX UNIT Supply Voltage  1.8  3.0 3.80 Volt  Supply Current RX mode   8.0    mA  Supply Current TX mode    10     mA  Supply Current Standby Mode    0.1   µA   RF TX Power Output       +5 dBm
