RC-CC2640-A-EV
14,00 €
Tasse escluse
RC-CC2640-A

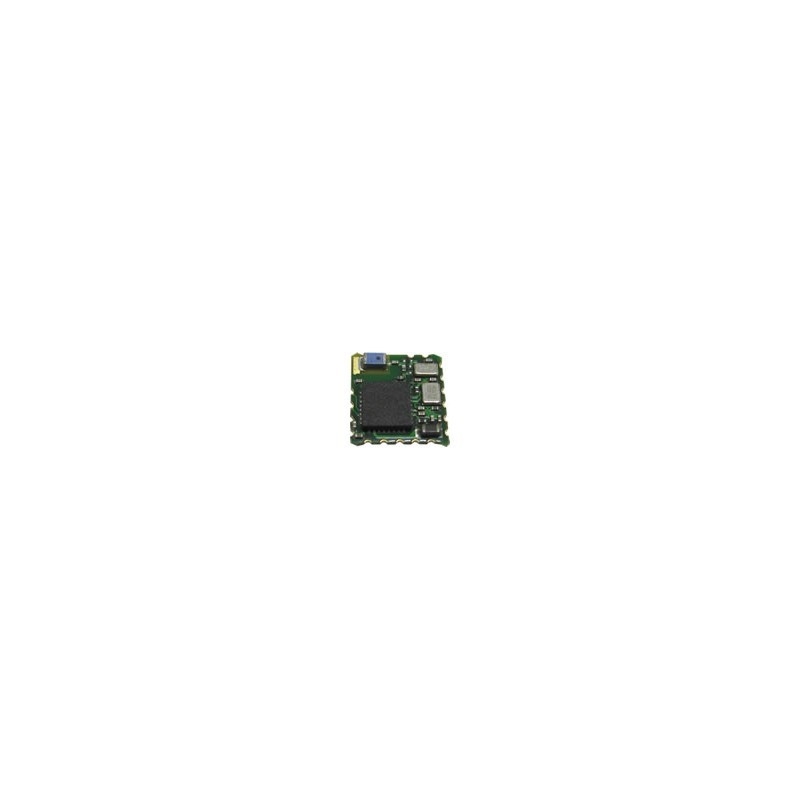

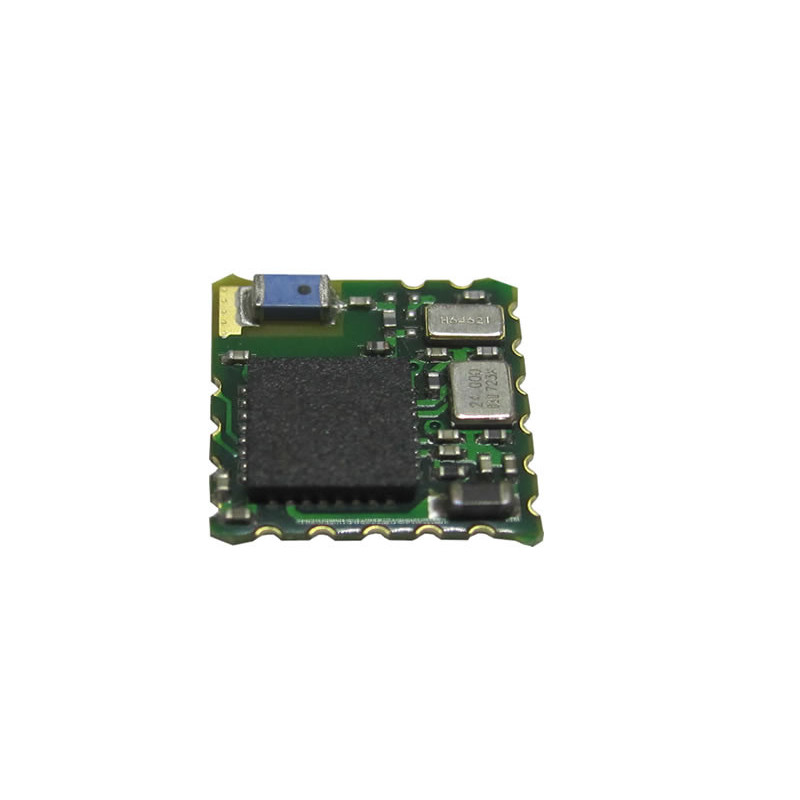

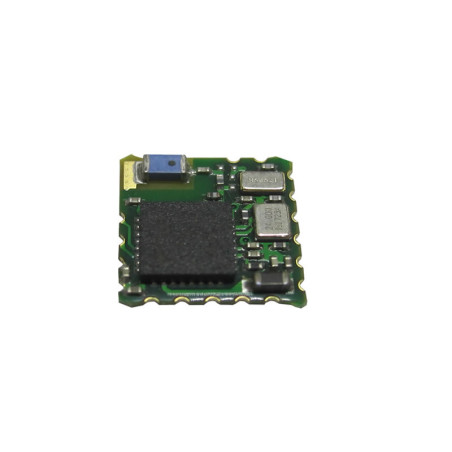

IoT Bluetooth Module based on CC2640 Texas Instruments component.
To make immediate usable the RC-CC2640-A module with Texas Instruments systems has been realized the adpter board.
Module + Adapter
 |
 |
|
Sicurezza del pagamento (direttamente su PayPal.com)
Consegna entro 3 giorni lavorativi
Cambio e Reso accettato (contattaci per approfondimenti)
RC-CC2640-A
IoT Bluetooth Module based on CC2640 Texas Instrument
RC-CC2640-A is designed based on CC2640FRSMR Bluetooth Smart (BLE4.1) System-on-Chip, fully supports the single mode Bluetooth Low Energy operation.
The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice.
Mechanical Drawing and dimensions
Very small 8 x 8.5mm
Feature
- Bluetooth4.1, Single mode compliant-Supports master and slave modes
- Build in CC2640F128 Bluetooth Smart System-On-Chip
- RF Performance : TX Power=+2dBm RX Sensitivity=-87 -94dBm
- Ultra low current consumption
- Transmit current(0dBm)=6.1mA
- Receiving current=5.9mA
- Size: 8mm×8.35mm×1.5mm
| Technical Characteristics | MIN | MAX | UNIT |
| Operation Voltage | 1.8 | 3.8 | Volt |
| Operating Temperature | -40 | 85 | °C |
| Current Consumption BLE Advertising (interval 100ms) | 0.23 | mA | |
| Current Consumption BLE Connection (interval 30ms) | 0.35 | mA | |
| Current Consumption BLE Connection (interval 50ms) | 0.22 | mA | |
| Current Consumption BLE Connection (interval 100ms) | 0.12 | mA | |
| Current Consumption BLE Connection (interval 500ms) | 0.02 | mA | |
| Current Consumption Sleep Mode | 1 | µA | |
| TX Power | -20 | 2 | dBm |
| RX Sensitivity | -87 | -94 | dBm |
| Storage Temperature | -40 | +150 | °C |
| Mechanical Dimensions 8.35 x 8mm |
| Pads | Name | Description |
| 1 | JTM | JTAG TMSC |
| 2 | JTC | JTAG TCKC |
| 3 | VDDS | 1.8V to 3.8V power Supply |
| 4 | GND | Ground |
| 5 | DIO 3 | GPIO, High drive capability, JTAG_TDO |
| 6 | DIO 4 | GPIO, High drive capability, JTAG_TDI |
| 7 | DIO 5 |
GPIO, Sensor controller, Analog |
| 8 | DIO 6 | GPIO, Sensor controller, Analog |
| 9 | DIO 7 | GPIO, Sensor controller, Analog |
| 10 | RSET | Reset, active-low (No internal pullup) |
| 11 | DIO 8 | GPIO, Sensor controller, Analog |
| 12 | DIO 9 | GPIO, Sensor controller, Analog |
| 13 | DIO 2 | GPIO, Sensor controller, High drive capability |
| 14 | DIO 1 | GPIO, Sensor controller, High drive capability |
| 15 | DIO 0 | GPIO, Sensor controller, High drive capability |
| 16 | GND | Ground |
| 17 | GND | Ground |
5 Articoli
Scheda tecnica
- Frequenza
- 2,4GHz
- Tipo di Modulazione
- Bluetooth
- Tensione di Alimentazione
- 1.8 - 3.8 Volt
- Assorbimento
- 0.23mA
- Dimensioni meccaniche
- 9.35 x 9mm
- Potenza RF
- -20dBm ÷ +2dBm
- Sensibilità
- -87dBm ÷ -94dBm
