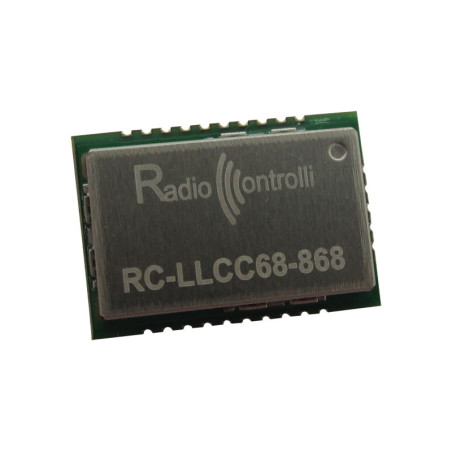

RC-LLCC68-868 based on Semtech LLCC68

It's a LoRa Smart Home module (based on Semtech LLCC68), controllable SPI interface

     datasheet.jpg            Catalog.jpg


Volume discounts

Quantity Unit discount You Save
10 10% €8.00
20 20% €32.00
Quantity
In stock

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

LoRa Smart Home module (based on Semtech LLCC68)





Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  1.8    3.7 Volt
 Supply Current RX mode (@DCDC Mode)   4.90  mA
 Supply Current  Sleep Mode    0.5 1.5   µA
 Supply Current  Transmit Mode    120    mA
 RF Power Output (for carrier)   +20.5 +21  dBm
 Frequency Band   868    MHz
 RF Sensitivity (for LORA modulation)    -148    dBm
 Operating Temperature Range  -20     +70  °C

     -







Pads  Name  Description
 1,2,3,4,5,6,7,8,9,10,11,12  GND  Ground
 13  VDD  Power Supply 1.8 to 3.7Vdc
 14  DIO-1  Digital I/O
 15  BUSY  BUSY indicator
 16  NRESET  Reset Trigger Input
 17  MISO  SPI slave output
 18  MOSI  SPI slave input
 19  SCK  SPI clock
 20  NSS  SPI Slave Select
 21 GND  Ground
 22  GND  Ground
 23  RF OUT  RF transmitter output
 24  GND  Ground
 25  GND  Ground




84 Items

Data sheet

Frequency
868MHz
Modulation
LoRa
Supply Voltage
1.8 - 3.6 Volt
Consumption
120mA
Dimension
19 x 13.0mm
RF Power Output
+21dBm
Sensitivity
-148dBm
