copy of LORA Module STM32WLE5 based (RC-WLE5-868)

copy of LORA Module STM32WLE5 based (RC-WLE5-868)

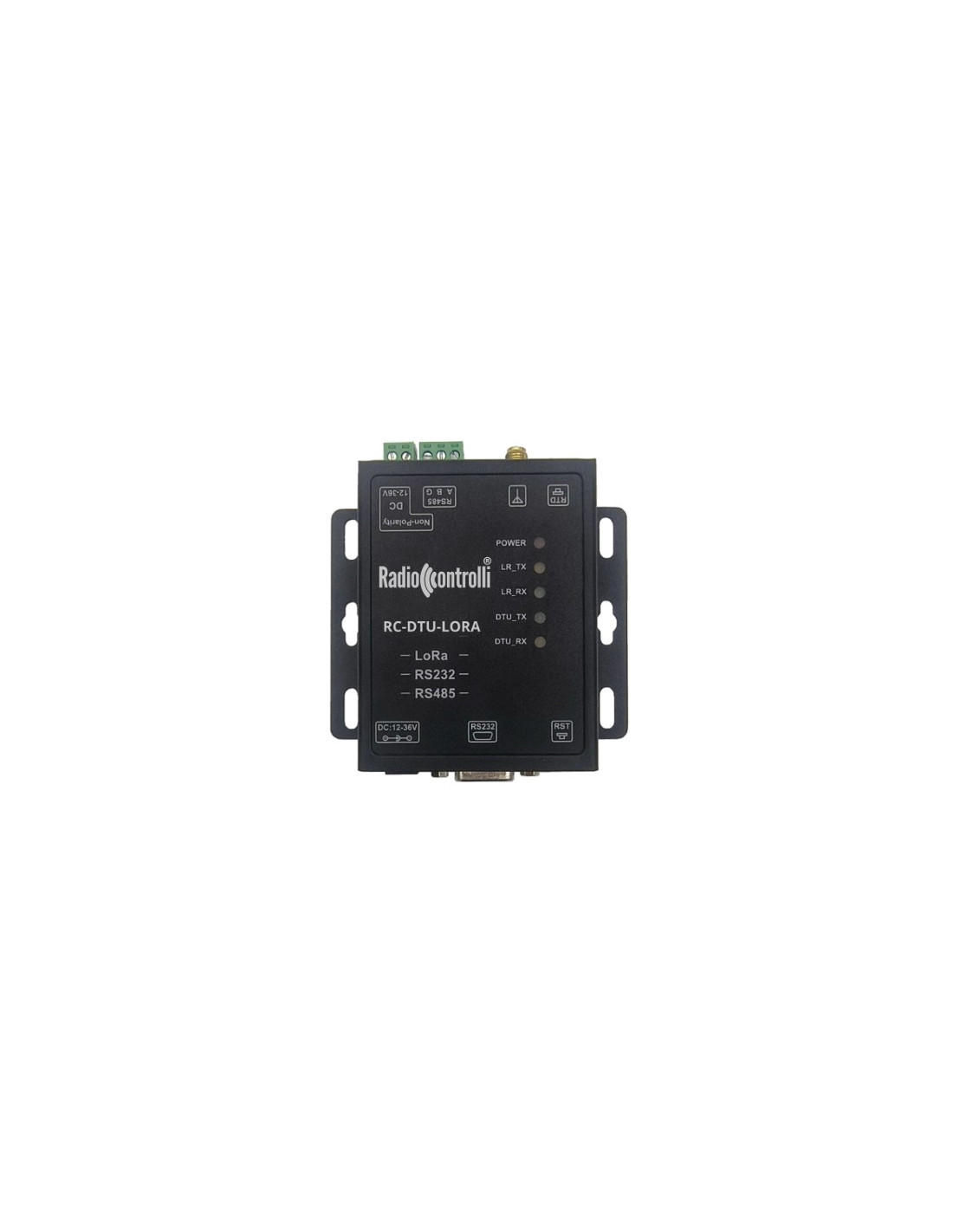

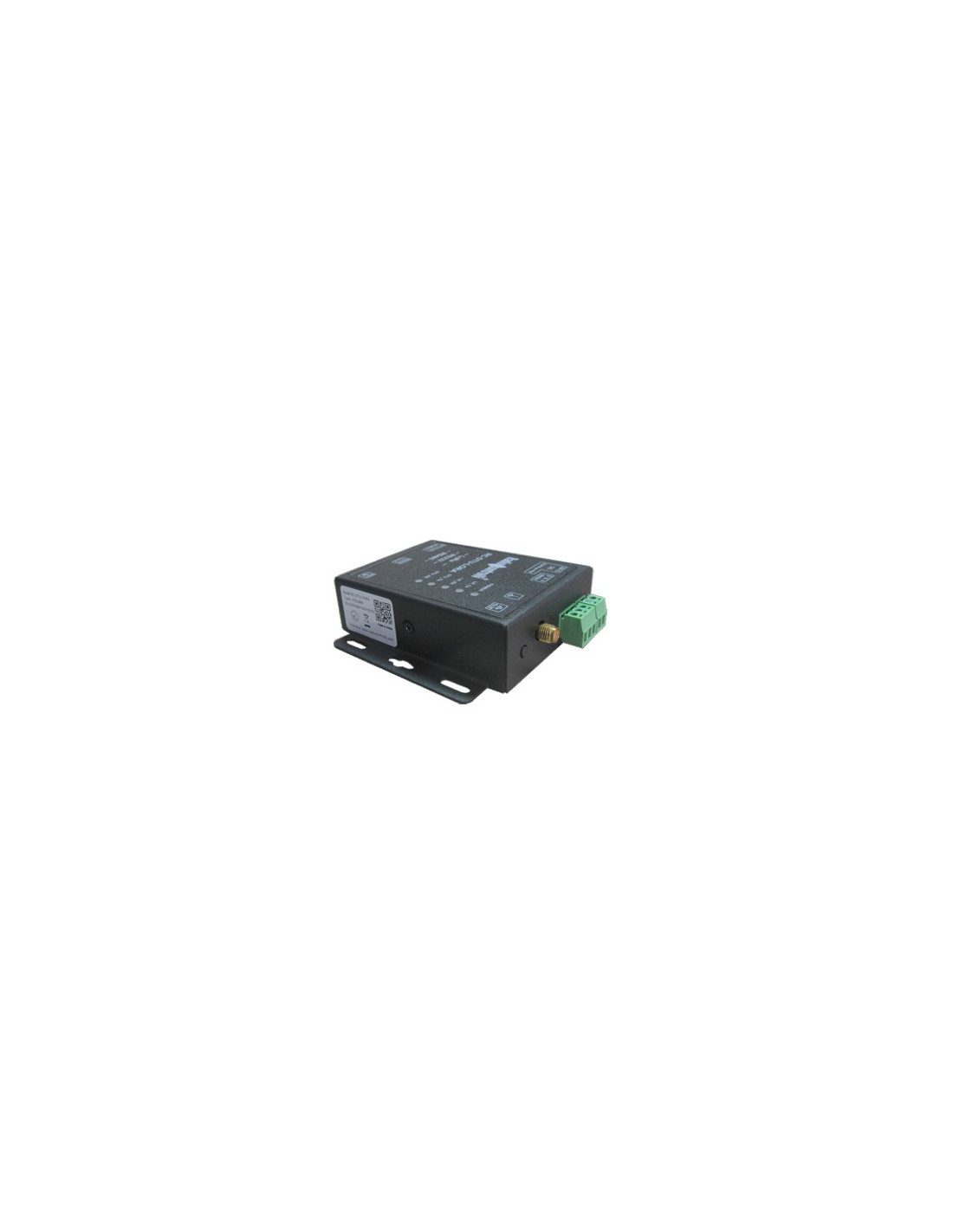

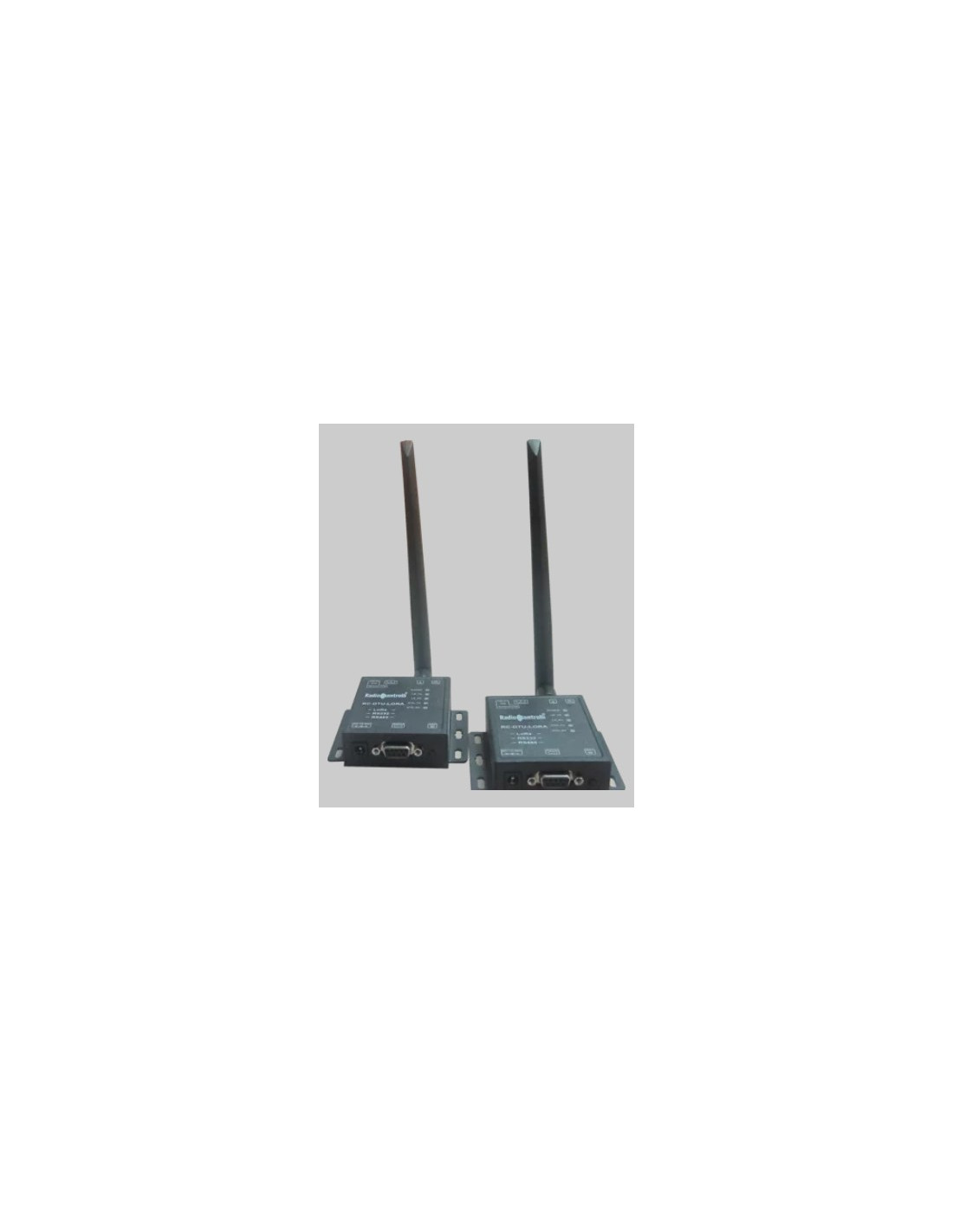

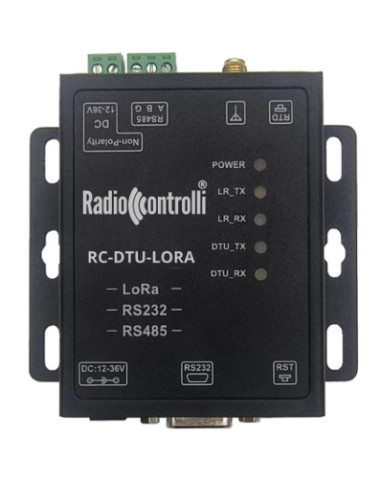

RC-DTU-LORA868

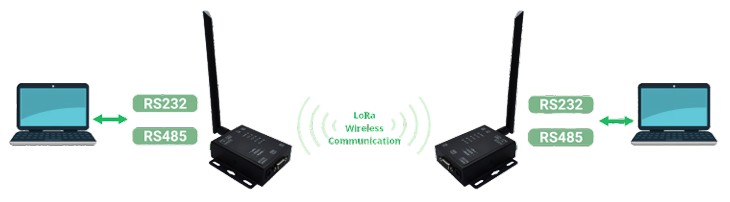

is a wireless information transmission unit based on LoRa, which mainly uses LoRa modulation technology for data transmission.

This DTU can run in two modes:

- General transparent transmission mode, receiving or sending through AT instruction.

- Master-slave transparent transmission mode, which can be set as Master or Slave, can interact according to Modbus protocol.

Frequency Band = 868MHz

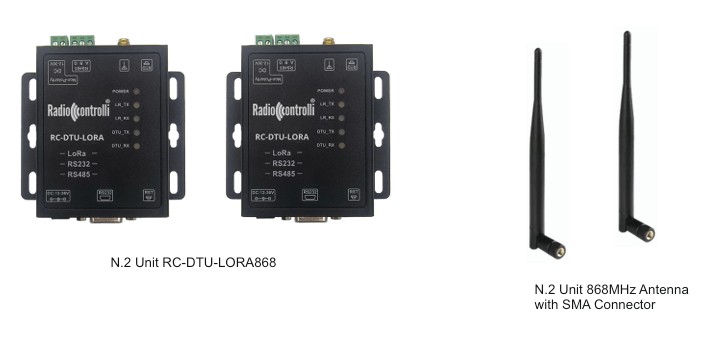

To proceed with this test, use a RC-DTU-LORA868-EK evaluation KIT composed as follows:

- N.2 of RC-DTU-LORA868 device

- N.2 of 868MHz Antenna

DATASHEET

Out-of-Stock

€120.00

Tax excluded

The minimum purchase order quantity for the product is 2.

Quantity	Unit discount	You Save
10	10%	€120.00
20	20%	€480.00

To proceed with this test, use a RC-DTU-LORA868-EK evaluation KIT composed as follows:

- N.2 of RC-DTU-LORA868 device

- N.2 of 868MHz Antenna

DATASHEET

Frequency: 868MHz
Modulation: LoRa
Supply Voltage: 2.5 - 3.6 Volt
Consumption: 5/120mA
Dimension: 14.5 x 13mm
RF Power Output: 18.5dBm
Sensitivity: -140dBm
