RF-CC1101-868

RF-CC1101-868

RF-CC1101-868

RF-CC1101-868

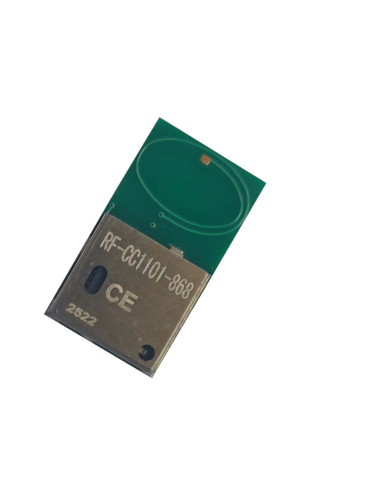

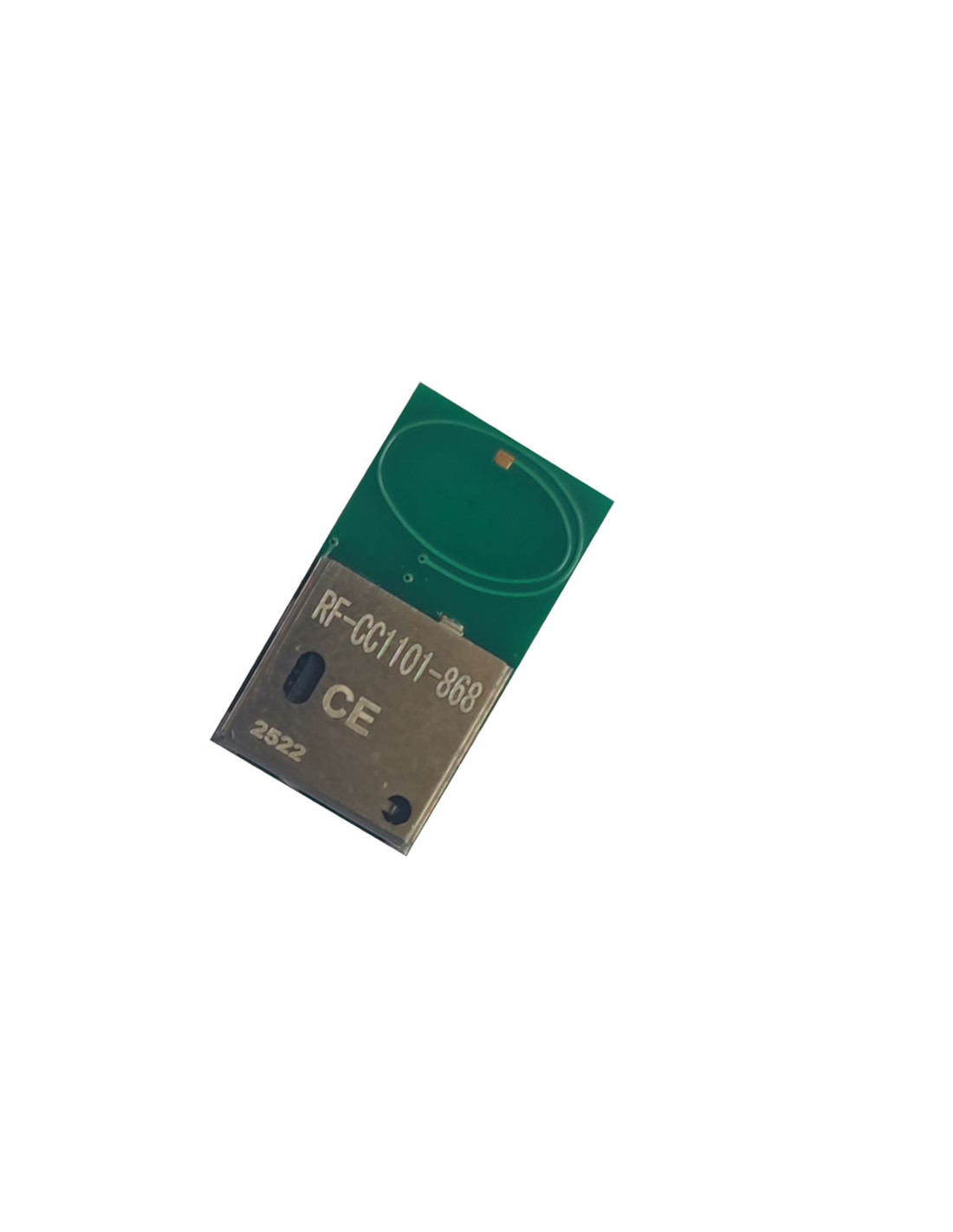

868MHz CC1101 Module miniaturized with antenna onboard.

In stock

12,00 €

Tasse escluse

La quantità minima ordinabile per questo prodotto è 2.

Quantità	Sconto unità	Salva
10	10%	12,00 €
20	20%	48,00 €

CC1101 Miniaturized Module with Antenna onboard

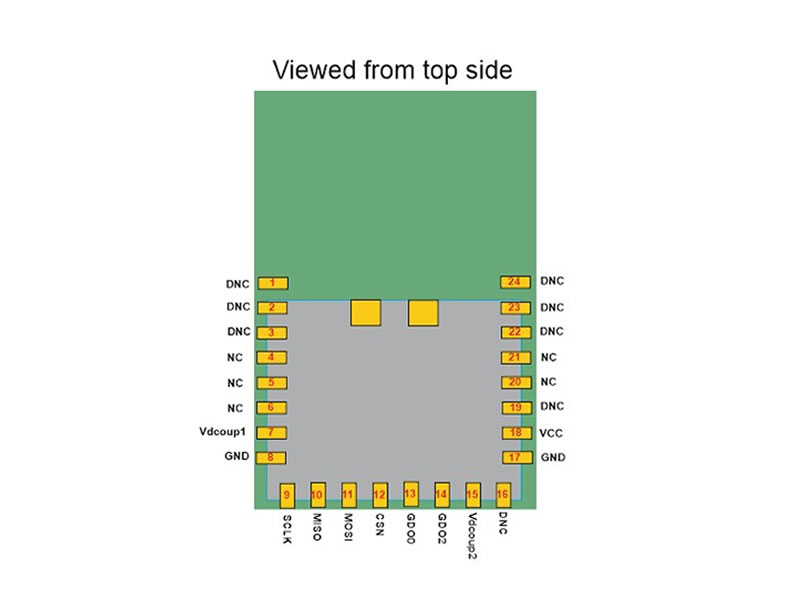

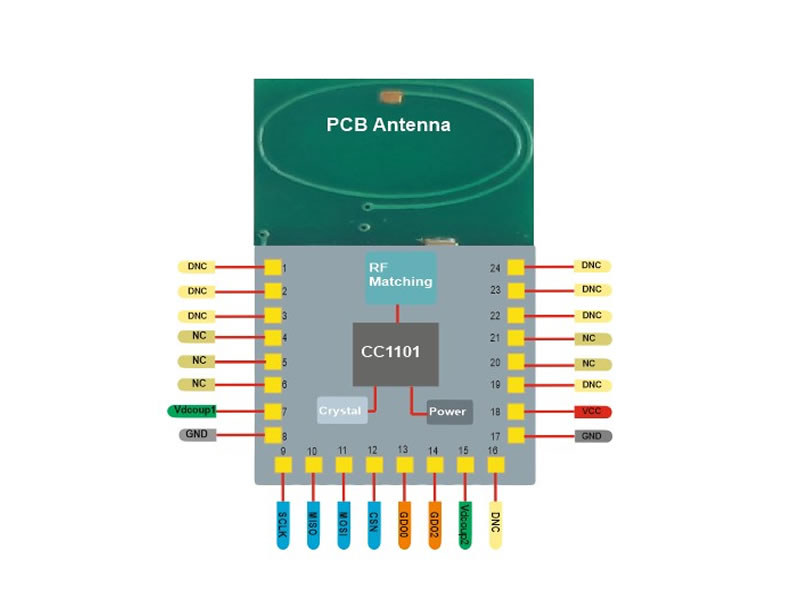

It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component. Programmable from external microcontroller via SPI interface.
Working frequency programmable in the following band : 868/915MHz
With PCB Antenna onboard.

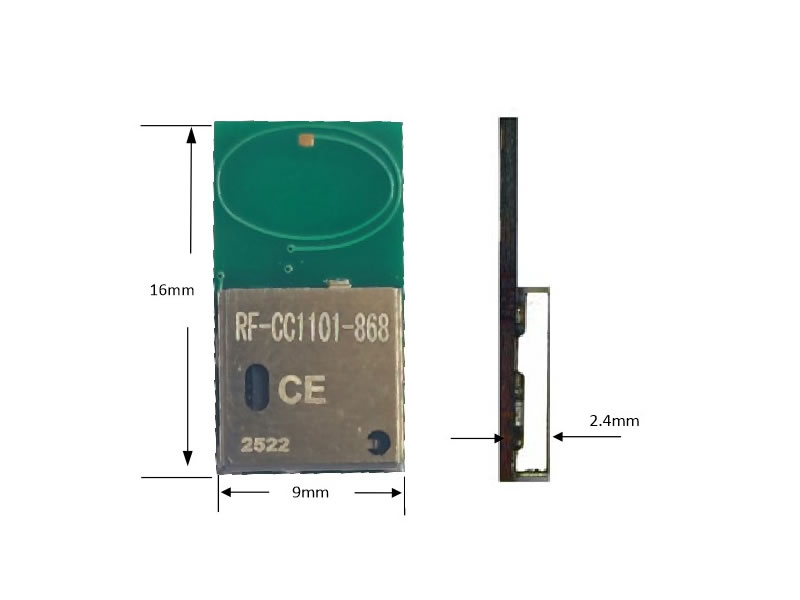

Very miniaturized version 9x16x2.4mm

Mechanical Dimensions : 15 x 18mm
Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	1.8		3.60	Volt
Current Consumption (RX mode/TX Mode)		20/38		mA
Current Consumption Sleep mode		1.0		µA
Frequency		868/915		MHz
RF Power Output 50ohm	-10		+12	dBm
RF Sensitivity (1.2 Kb/sec data rate)		-112		dBm
Data Rate	0.6		600	Kbit/s
Tolerance Receiver Frequency		±1.5		KHz
Frequency deviation	±1.5		±380	KHz
Operating Temperature range	-30		+75	°C

DOWNLOAD DATASHEET

Frequenza: 868MHz
Tipo di Modulazione: ASK / FSK
Tensione di Alimentazione: 1.8 - 3.6 Volt
Assorbimento: 20/38mA
Dimensioni meccaniche: 9x16x2.4mm
Potenza RF: +12dBm
Sensibilità: -112dBm

In magazzino 180 Articoli
