RF-CC1101-868

RF-CC1101-868

RF-CC1101-868

RF-CC1101-868

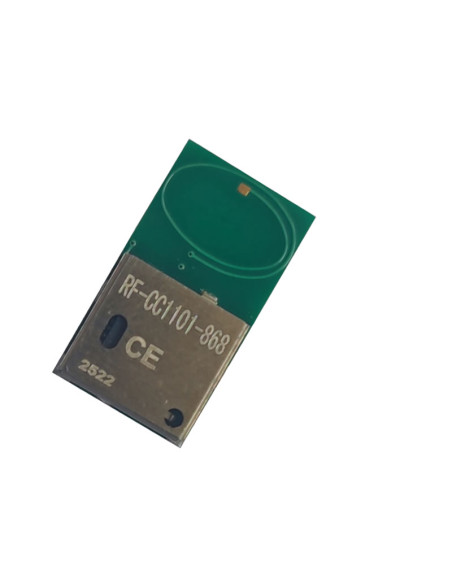

868MHz CC1101 Module miniaturized with antenna onboard.

In stock

€12.00

Tax excluded

The minimum purchase order quantity for the product is 2.

Quantity	Unit discount	You Save
10	10%	€12.00
20	20%	€48.00

CC1101 Miniaturized Module with Antenna onboard

It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component. Programmable from external microcontroller via SPI interface.
Working frequency programmable in the following band : 868/915MHz
With PCB Antenna onboard.

Very miniaturized version 9x16x2.4mm

Mechanical Dimensions : 15 x 18mm
Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	1.8		3.60	Volt
Current Consumption (RX mode/TX Mode)		20/38		mA
Current Consumption Sleep mode		1.0		µA
Frequency		868/915		MHz
RF Power Output 50ohm	-10		+12	dBm
RF Sensitivity (1.2 Kb/sec data rate)		-112		dBm
Data Rate	0.6		600	Kbit/s
Tolerance Receiver Frequency		±1.5		KHz
Frequency deviation	±1.5		±380	KHz
Operating Temperature range	-30		+75	°C

DOWNLOAD DATASHEET

Frequency: 868MHz
Modulation: ASK / FSK
Supply Voltage: 1.8 - 3.6 Volt
Consumption: 18/30mA
Dimension: 18 x 15mm
RF Power Output: 10dBm
Sensitivity: -112dBm

In stock 180 Items
