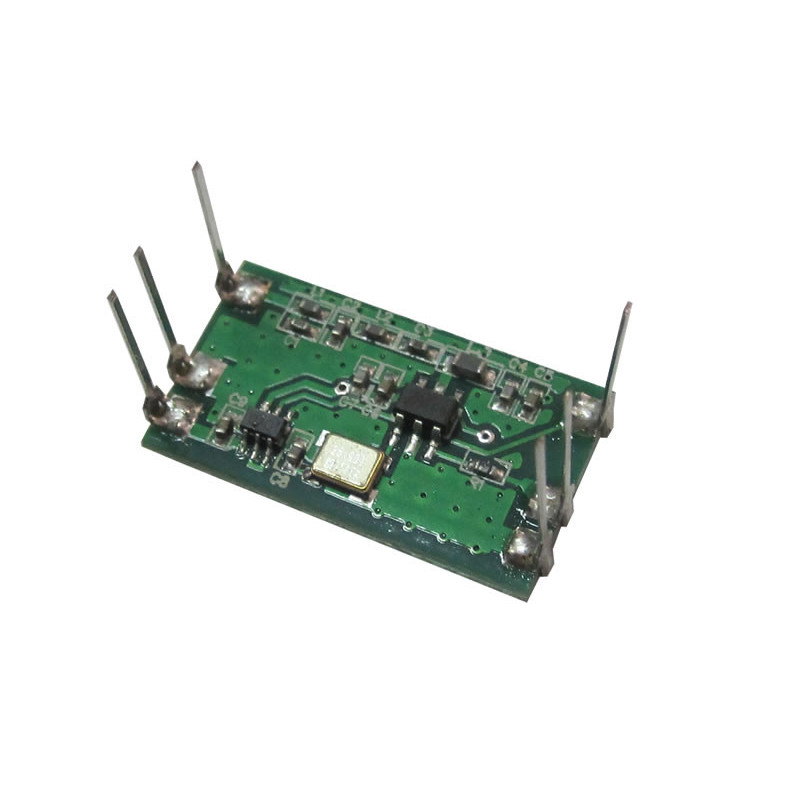

868.30MHz Radio Transmitter module with crystal oscillator, ASK/OOK Modulation

Power down mode is available.

In stock

7,00 €

Tasse escluse

La quantità minima ordinabile per questo prodotto è 2.

Quantità	Sconto unità	Salva
20	20%	28,00 €

868.30MHz ASK Radio Transmitter Module

RC-TASK2-868 is an ASK Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 10dBm. Power down mode is also available.

(*)we recommend the use of an antenna with a gain not higher than 3dB
Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	2.2		3.6	Volt
Current Consumption (TX Mode)		21 / 15		mA
Current Consumption (Standby mode)		<3	100	µA
Frequency		868.30		MHz
RF Output Power			10(*)	dBm
Frequency Tolerance		±20		KHz
Max data rate		50		Kbit/s
Power Up Timer			1	ms
Operating Temperature range	-25		+80	°C

Pads	Name	Description
1	EN	Enable
2	DATA IN	Data Input
3	GND	Ground
4	VCC	Power Supply
5	GND	Ground
6	ANT	Antenna

Frequenza: 868.35MHz
Tipo di Modulazione: ASK
Tensione di Alimentazione: 2.2 - 3.6 Volt
Assorbimento: 21/15mA
Conformità: CE RED
Potenza RF: 10dBm

In magazzino 147 Articoli
