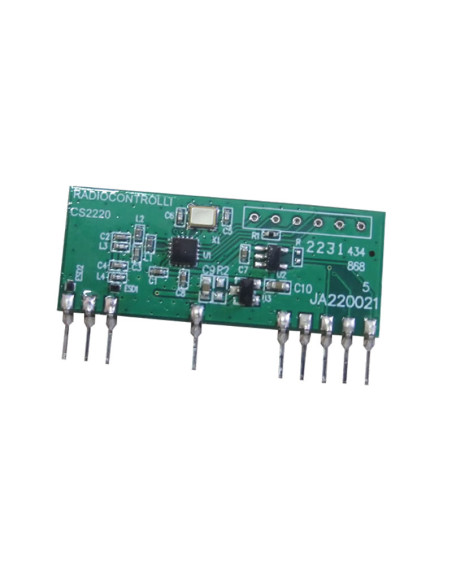

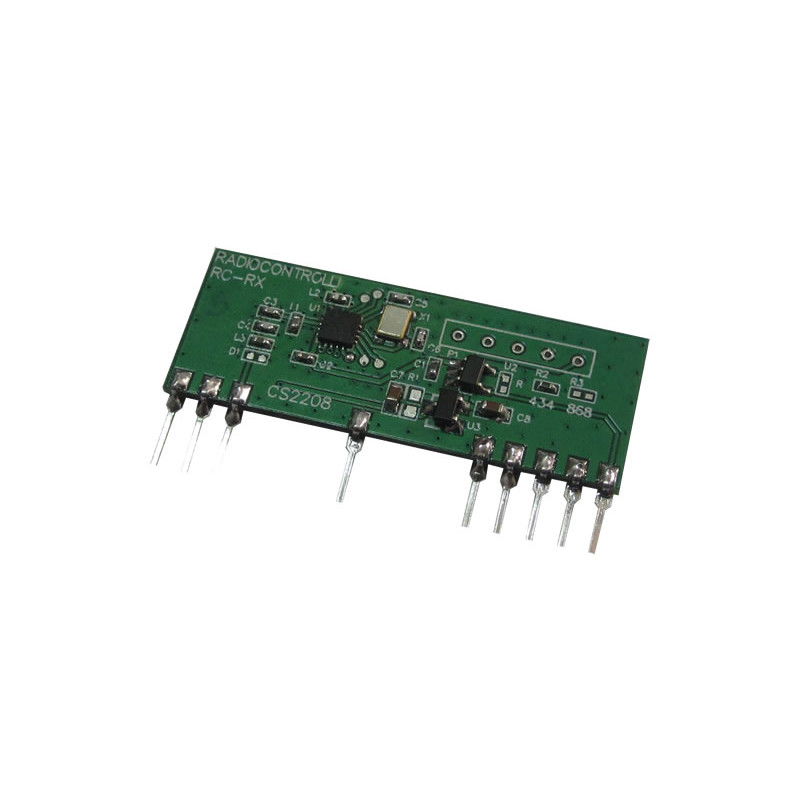

RC-RXASK-433-LP
 |
 |
RC-RXASK-433-LP

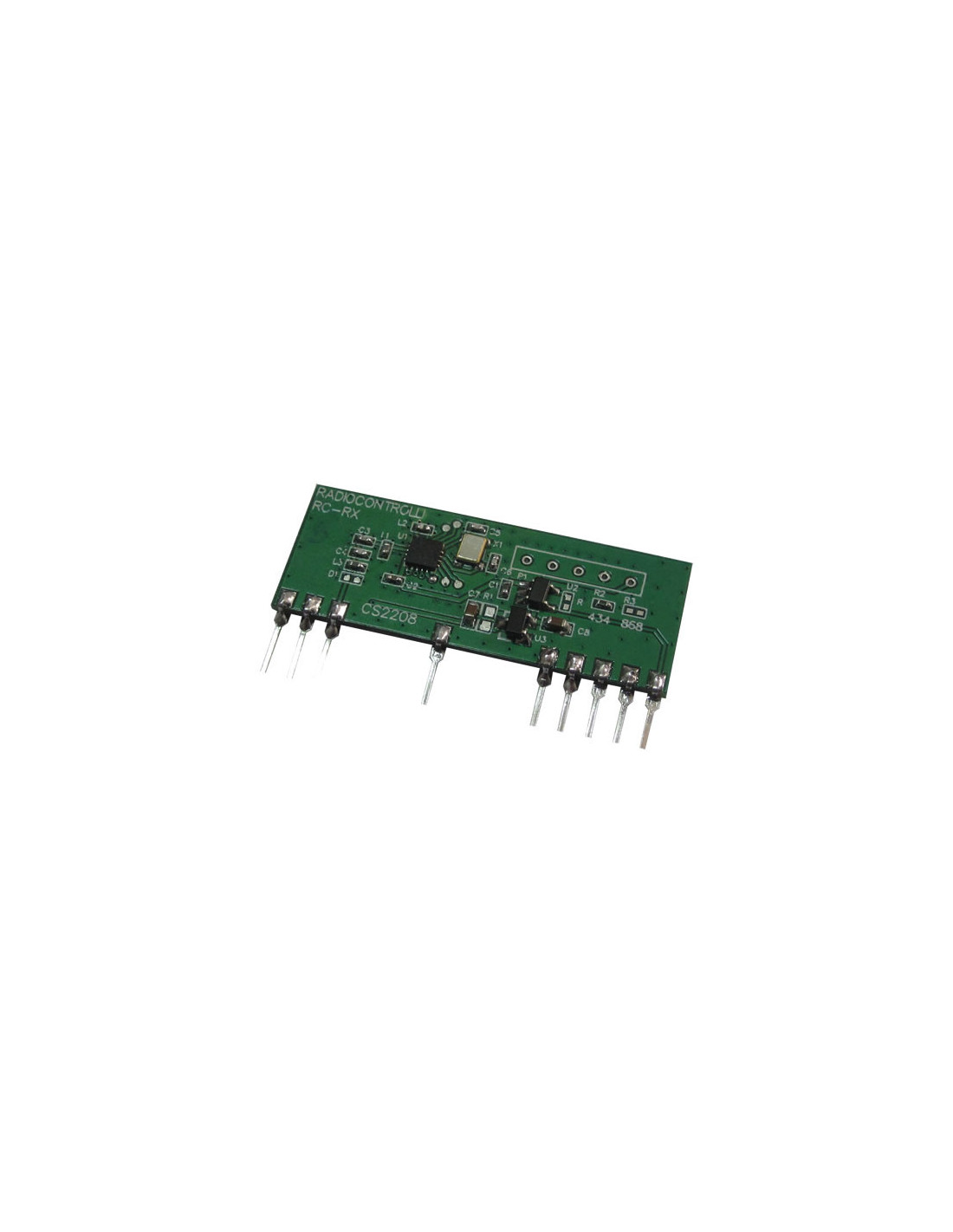

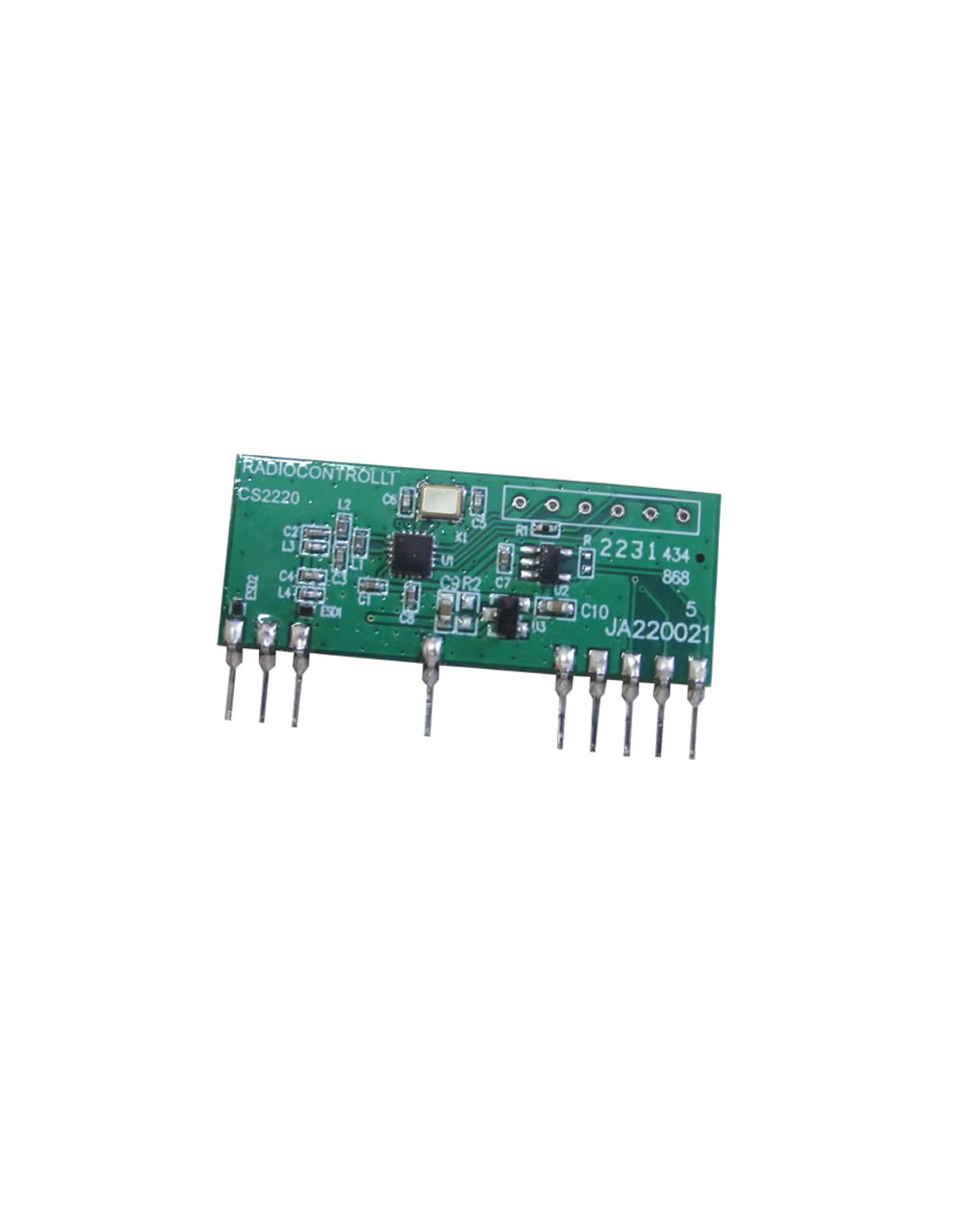

433.92MHz ultra Low-power OOK Receiver Module is a compact, ultra-low-power OOK (On-Off Keying) RF receiver module operating at 433.92 MHz, designed for battery-powered remote control and wireless sensor applications. The module implements a duty-cycled receive architecture that drastically reduces average current consumption while maintaining high RF sensitivity and stable operation.

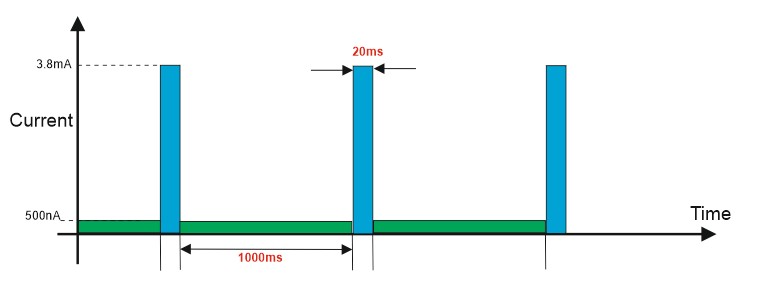

Duty-Cycle Receive Operation To minimize power consumption, the receiver operates in a duty-cycled mode, alternating between sleep and RX active windows. Default configuration:
Sleep time: 1000 ms
RX window: 20 ms
Resulting average current is 75µA, ideal for long-life battery. Custom duty-cycle configurations are available on request.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.80 | 3.0 | 3.6 | Volt |
| Average Current Consumption | 75.0 | µA | ||
| Supply Current (RX mode) | 3.8 | mA | ||
| Supply Current (Sleep mode) | 500 | nA | ||
| Supply Current (Shut down mode) | 100 | nA | ||
| Frequency | 433.92 | MHz | ||
| Max Data Rate | 4.8 | kbit/s | ||
| RF Sensitivity | -108 | dBm | ||
| RF Bandwidt 3dBm | ±250 | KHz | ||
| Operating Temperature Range | -20 | +80 | °C |
