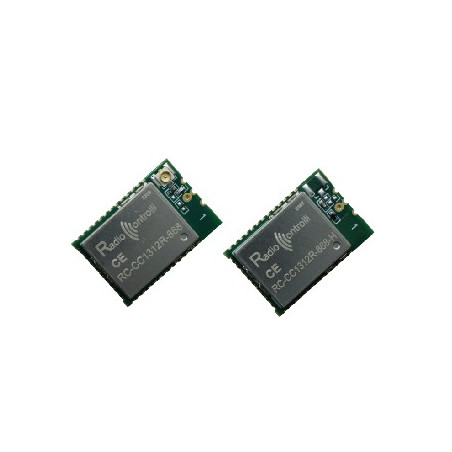

Evaluation kit for 868MHz Radio Modem (RCQ5-868-EV)
This Evaluation kits is composed from:
- N.2 Evaluation board
- N.2 868MHz Antenna
- N. 2 USB Cable
- Radio Modem with AT Command (Transparent Transmission Protocol)
The RF modem is very simple to use and provides a wireless RS232 link with a RF data rate of up to 200kbps (2-GFSK modulation).
The module can work also in Long Range Mode (LRM) with a RF data rate egual to 2.5kbps.
The transceivers has the functions of a complete radio modem and simply require CMOS/TTL data at the transmit input and the corresponding transceiver(s) output
the same data. Preamble and CRC are automatically generated and added to the RF transmission.
- Over The Air Command (OTA Command)
The module has the ability to manage No. 4 digital outputs and No. 4 digital inputs both locally and remotely (OTA Command) by sending simple AT commands.
- ALARM Functionality
With this function, when a digital input change status (DEVICE A) a message will be transmitted via UART to the DEVICE B : “Alarm_0_1
- Remote I/O Functionality
This is two-way transmission used in the field automatic control. It is possible Turn ON and turn OFF the remote IO mirroring function.
When we enable the Remote I/O function, if any Digital Input is change on the Station A, the digital output of the remote Station B will also mirror these states at the same time.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 1.8 | 3.0 | 3.60 | Volt |
| Supply Current (RX mode) | 5.8 | mA | ||
| Supply Current (TX mode / +10dBm) | 13.4 | mA | ||
| Supply Current (TX mode / +14dBm) | 24.9 | mA | ||
| Supply current sleep mode | 2 | µA | ||
| Frequency Range CEPT/ERC/REC 70-03 | 913 | 917 | MHz | |
| RF Output Power | -10 | +14 | dBm | |
| RF Sensitivity (50 Kb/sec Data Rate) |
-110 | dBm | ||
| RF Sensitivity (2.50 Kb/sec Data Rate) |
-118 | dBm | ||
| Operating Temperature range | -20 | +70 | °C | |
| Mechanical Dimensions 15 x 22mm |
| Pads | Name | Description |
| 1,9,37,39 | GND | Ground |
| 2 | Wake-Up | Wake Up from Sleep mode (Low Active) |
| 3 | RX | UART RX |
| 4 | TX | UART TX |
| 7 | STATUS |
When the system operates normally is HIGH When the system is in Sleep mode is LOW When will use Factory Reset this will flash |
| 10 | VDD | 1.8Volt ÷ 3.8Volt main chip supply |
| 14 | FACTORY |
- Factory Reset Low Active After pull down this pin, and then powering ON again the pin 7 (STATUS) will flash 5 times and then stay on, means that the factory reset has been restored. |
| 15 | LP-UART | LP-UART enable low active |
| 24 | DIN-0 | Digital Input DIN-0 |
| 25 | DIN-1 | Digital Input DIN-1 |
| 26 | DIN-2 | Digital Input DIN-2 |
| 27 | DIN-3 | Digital Input DIN-3 |
| 28 | RTS | RESET (Active Low internal pullup) |
| 29 | OUT-0 | Digital Output OUT-0 |
| 30 | OUT-1 | Digital Output OUT-1 |
| 31 | OUT-2 | Digital Output OUT-2 |
| 32 | OUT-3 | Digital Output OUT-3 |

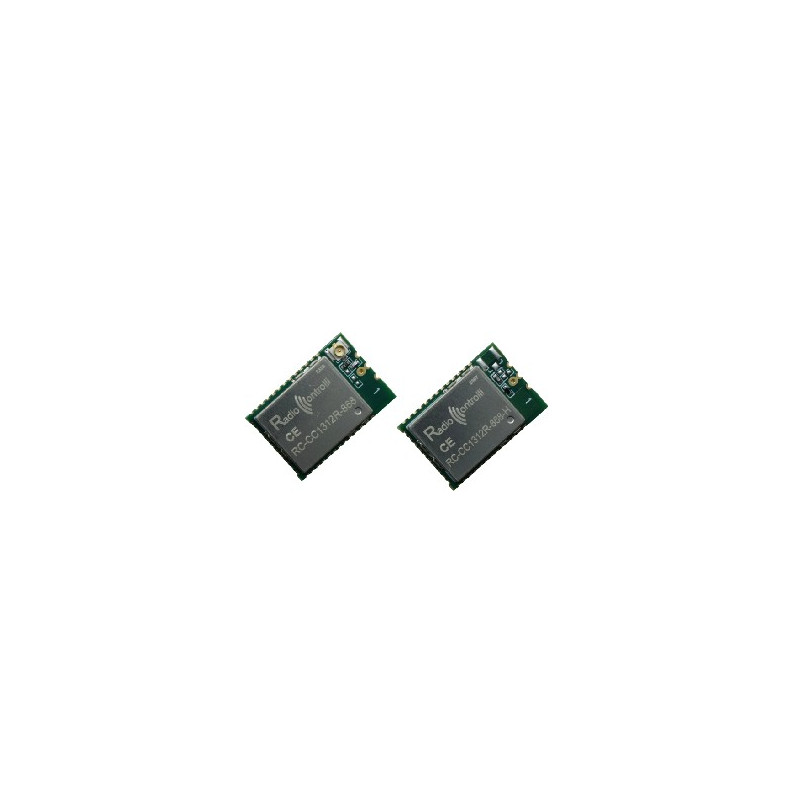

The Evaluation KIT

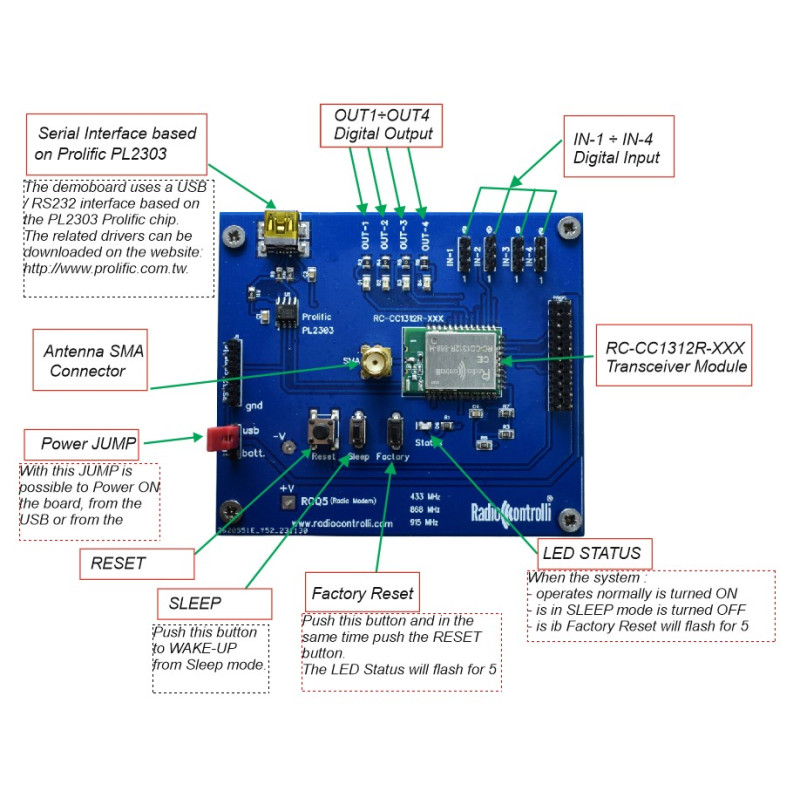

N. 2 Evaluation Board with SMA Antenna
N. 2 USB Cables
