RC-RFSK1-868

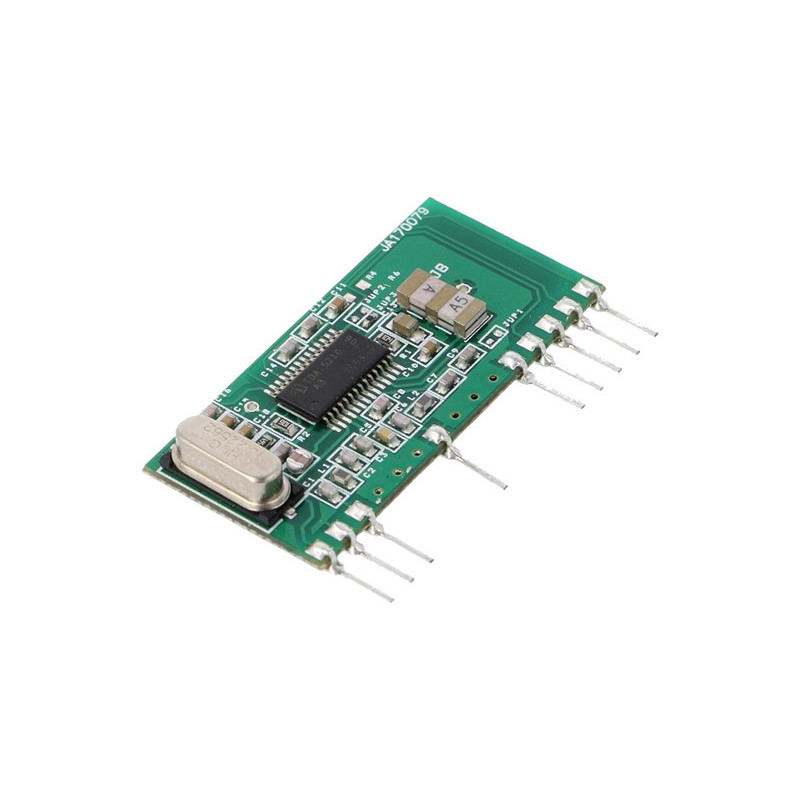

868.35MHz FSK Superhet Receiver

RC-RFSK1-868 is an FSK Radio Receiver Module with PLL Synthesizer and crystal oscillator. Single line package with power down mode and RSSI Output.

     datasheet.jpg             Catalog.jpg

Volume discounts

Quantity Unit discount You Save
10 10% €12.00
20 20% €48.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

868MH FSK Radio Receiver Module

 RC-RFSK1-868 is an FSK Radio Receiver module with PLL synthesizer and crystal oscillator, single line package with Power down mode and RSSI output.



Mechanica Dimensions : 18.33 x 38.10mm
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  4.5   5.5 Volt
 Current Consumption (TX Mode)   5.7 6.8  mA
 Current Consumption (Standby mode)      100  nA
 Frequency     868.35    MHz
 Max Data Rate      4.8  Kbit/s
 RF Sensitivity     -100   dBm
 3dB Bandwith   ±150      KHz
 Level of emitted spectrum
      70 dBm
 Power Up Timer (from Power on to RF)
     8 ms
 Power Up Timer (from EN to RF)     5 ms
 Operating Temperature range -25   +80 °C
Mechanical Dimensions  18.33 x 38.10mm



Pads  Name  Description
 1  VCC  Power Supply
 2  GND  Ground
 3  ANT  Antenna
 7  GND  Ground
 11  GND  Groud
 12  NC  Not used
 13  RSSI  Received Signal Strenght Output
 14  OUT  Data Out
 15  PD  Power Down
75 Items

Data sheet

Frequency
868.35MHz
Modulation
FSK
Supply Voltage
4.5 - 5.5 Volt
Consumption
5.7mA
Dimension
38.1 x 18.3mm
Sensitivity
-102dBm
