RC-TFSK3-868

868.35MH FSK Radio Transmitter Module

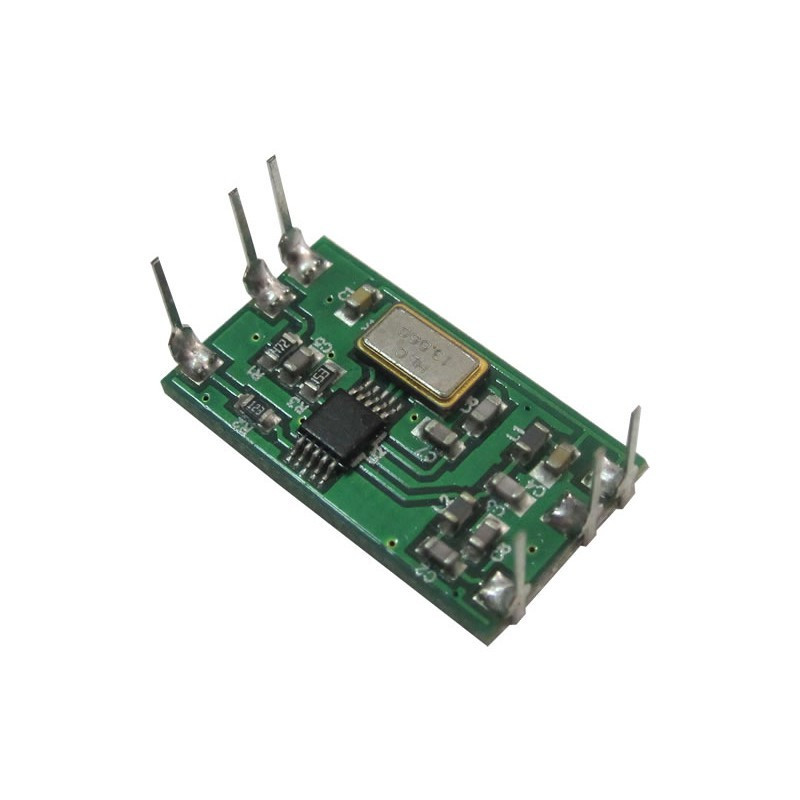

 RC-TFSK3-868 is an FSK Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 0 10dBm. Power down mode is also available.



Mechanical Dimensions : 11.43 x 20.32mm



Technical Characteristics MIN TYP MAX UNIT Supply Voltage   2.4    3.6 Volt  Current Consumption (TX Mode)    14.5  15.5  mA  Current Consumption (Standby mode)      100  nA  Frequency     868.35    MHz  Max Data Rate      40  Kbit/s  RF Output Power 8    10 dBm  Frequency Accuracy  -35       +35 KHz  FM Deviation  25   30  35 KHz  Power Up Timer (from Power on to RF)
     5 ms  Power Up Timer (from EN to RF)     1 ms  Operating Temperature range -25   +80 °C

Pads	Name	Description
1	EN	Enable
2	DATA IN	Data Input
3	GND	Ground
4	VCC	Power Supply
5	GND	Ground
6	ANT	Antenna
