RC-TFSK4-868N

€7.00
Tax excluded

RC-TFSK4-868N

868.35MHz Radio Transmitter module with crystal oscillator, FSK Modulation

Power down mode is available.

     datasheet.jpg                     Catalog.jpg

Volume discounts

Quantity Unit discount You Save
20 20% €28.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

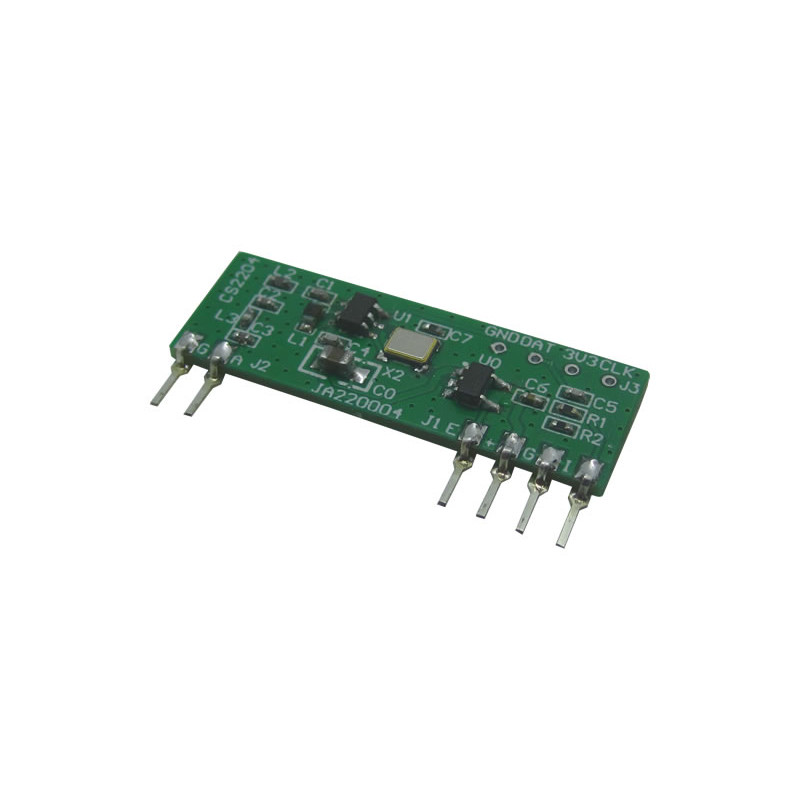

868.35MHz FSK Radio Transmitter Module

 RC-TFSK4-868N is an FSK Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 10dBm. Power down mode is also available.



(*)we recommend the use of an antenna with a gain not higher than 3dB
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage   2.2    3.6 Volt
 Current Consumption (TX Mode)    21 / 15    mA
 Current Consumption (Standby mode)    <3  100  µA
 Frequency    868.35    MHz
 RF Output Power      10(*) dBm
 Frequency Tolerance   ±20      KHz
 Max data rate    50    Kbit/s
 Power Up Timer      1 ms
 Operating Temperature range -25   +80 °C



Pads  Name  Description
 1  GND  Ground
 2  ANT  External Antenna
 3  EN  Enable
 4  VCC Power Supply
 5  GND  Ground
 6  IN  DataIN
100 Items

Data sheet

Frequency
433.92 MHz
Modulation
FSK
Supply Voltage
2.2 - 3.6Volt
Consumption
21mA
Compliance
CE RED
RF Power Output
10dBm
