868.95MHz Radio Transmitter module with crystal oscillator, ASK/OOK Modulation

Power down mode is available.

     datasheet.jpg                     Catalog.jpg

In stock
€7.00
Tax excluded

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
20 20% €28.00

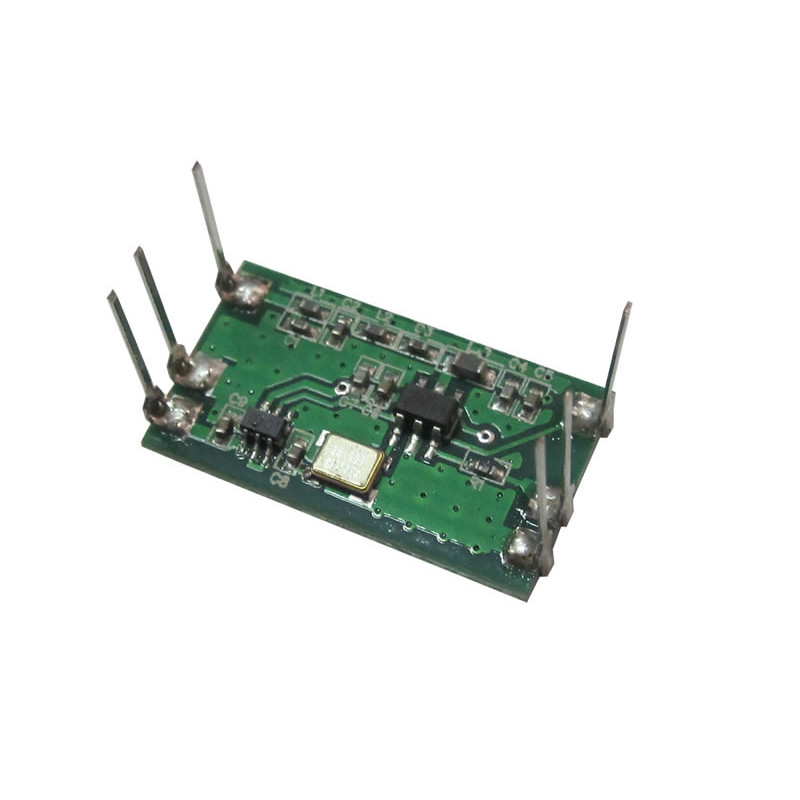

868.95MHz ASK Radio Transmitter Module

RC-TXASK-868.95 is an ASK  Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 10dBm. Power down mode is also available.



(*)we recommend the use of an antenna with a gain not higher than 3dB
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage   2.2    3.6 Volt
 Current Consumption (TX Mode)    21 / 15    mA
 Current Consumption (Standby mode)    <3  100  µA
 Frequency    868.95    MHz
 RF Output Power      10(*) dBm
 Frequency Tolerance   ±20      KHz
 Max data rate    50    Kbit/s
 Power Up Timer      1 ms
 Operating Temperature range -25   +80 °C



Pads  Name  Description
 1  EN  Enable
 2  DATA IN  Data Input
 3  GND  Ground
 4  VCC Power Supply
 5  GND  Ground
 6  ANT  Antenna
Frequency
868.95 MHz
Modulation
ASK
Supply Voltage
2.2 - 3.6Volt
Consumption
21mA
Compliance
CE RED
RF Power Output
10dBm
