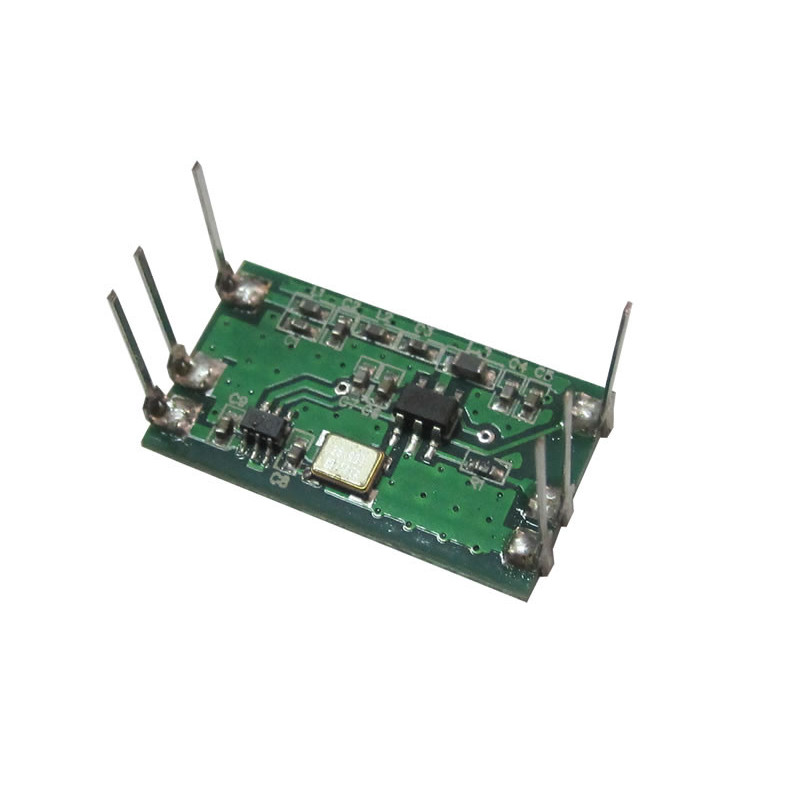

RC-TXASK-433
€7.00
Tax excluded
RC-TXASK-433
433.92MHz Radio Transmitter module with crystal oscillator, ASK/OOK Modulation
Power down mode is available.
 |
 |
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
433.92MHz ASK Radio Transmitter Module
RC-TXASK-433 is an ASK Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 10dBm. Power down mode is also available.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 2.2 | 3.6 | Volt | |
| Current Consumption (TX Mode) | 21 / 15 | mA | ||
| Current Consumption (Standby mode) | <3 | 100 | µA | |
| Frequency | 433.92 | MHz | ||
| RF Output Power | 10(*) | dBm | ||
| Frequency Tolerance | ±20 | KHz | ||
| Max data rate | 50 | Kbit/s | ||
| Power Up Timer | 1 | ms | ||
| Operating Temperature range | -25 | +80 | °C |
| Pads | Name | Description |
| 1 | EN | Enable |
| 2 | DATA IN | Data Input |
| 3 | GND | Ground |
| 4 | VCC | Power Supply |
| 5 | GND | Ground |
| 6 | ANT | Antenna |
100 Items
Data sheet
- Frequency
- 433.92 MHz
- Modulation
- ASK
- Supply Voltage
- 2.2 - 3.6Volt
- Consumption
- 21mA
- Compliance
- CE RED
- RF Power Output
- 10dBm
