Kit di valutazione RC-WuTRX-915

160,00 €
Availability:
In stock
Reference:

Kit di valutazione RC-WuTRx-915

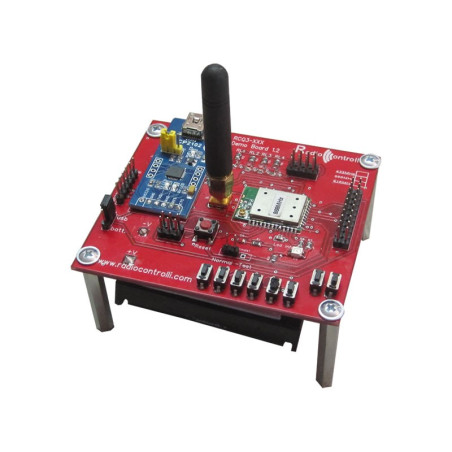

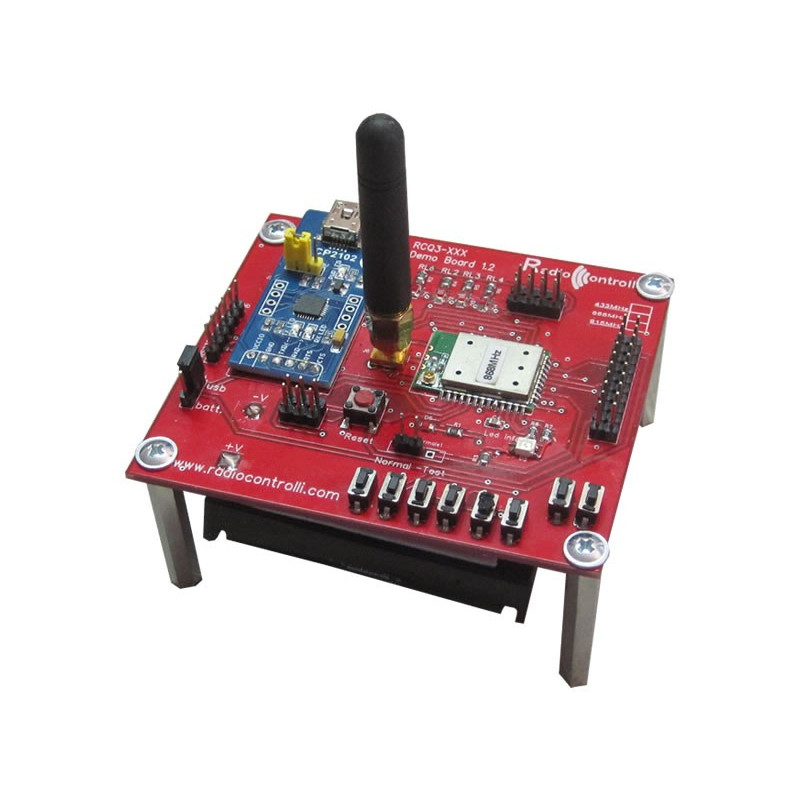

Conposto da :

- N.2 Evaluation Board RC-WuTrx-915

- N.2 Cavetti USB

Sconti sul volume

Quantità Sconto Salva
10 10% Fino a 160,00 €
20 20% Fino a 640,00 €
Qty:

Print

Ultra Low Power WakeUp Transceiver allow to optimaze the power consumption for IoT application.
It’s a transceiver module that uses «wake up receiver tecnique» to be used in very low consumption applications.The WakeUp-Receiver continuously monitors the wireless channel (without the use of a microcontroller) and recognizes if there are any radio signals addressed to him, in this case it returns the data received on the serial interface.
The device wakes up every 1000ms (this time is programmable) for a time of 250µsec.
In this conditions the average of the consumption is 10µA with a Sensibility of -110dBm.

The device RC-WuTRx-915 is based on the CC1310 device from Texas Instrument.

3 Articoli

Scheda tecnica

Frequenza
915MHz
Tipo di Modulazione
2GFSK
Tensione di Alimentazione
2.2 - 3.6 Volt
Assorbimento
10µA ÷ 1.2mA
Dimensioni meccaniche
22 x 15mm
Potenza RF
+14dBm
Sensibilità
-110dBm
