RC-RICK-434-EV Evualuation KIT for LoRa Radio Modem
The RC-RICK-434-EV is composed from the following components :

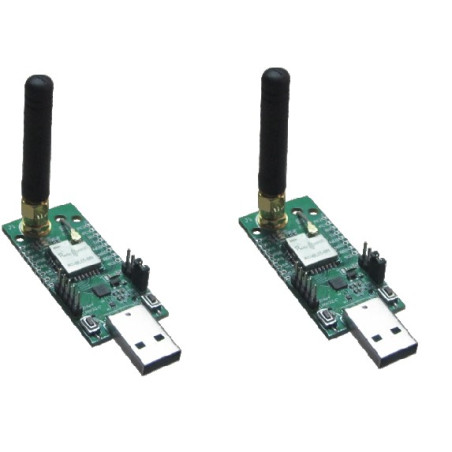

N.2 USB LORA Dongle equipped with :
-Dongle USB Interface (based on the CP2102 Silicon Lab USB/Serial)

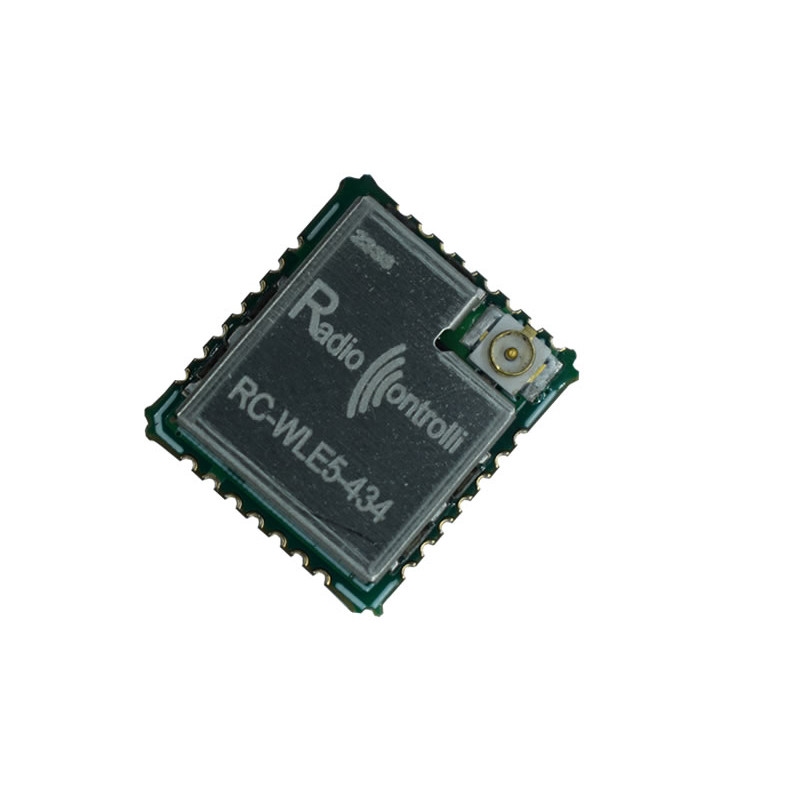

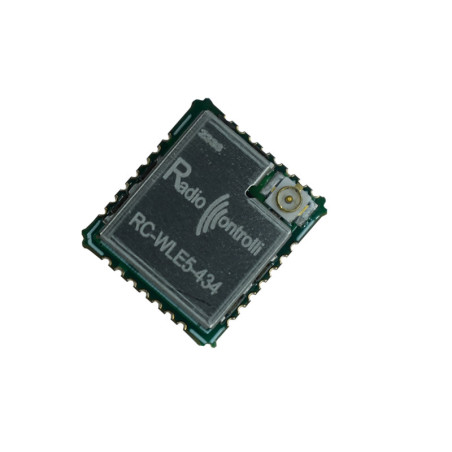

-RC-RICK-434 module (Hardware = RC-WLE5-434 with pre-installed internal software).
-Cable UFL-SMA
-RC-ANT-434-SMA (Antenna 868MHz with SMA connector)
Lora Radio Modem AT Command (Lora Transparent Transmission Protocol)
RC-RICK-434 is a radio modem with UART interface usable with AT commands for long distance communication with LoRa
modulation (LoRa Transparent Transmission Protocol).
Working into European bandwidth : 433MHz
The hardware is based on the module RC-WLE5-868 designed by RadioControlli (STM32WLE5JC based).
To test and verify this radio modem application it is possible to download the software on the following hyperlink : Applicazione radio modem LoRa AT command
DEMO VIDEO
- Frequenza
- 433MHz
- Tipo di Modulazione
- LoRa
- Tensione di Alimentazione
- 2.5 - 3.6 Volt
- Assorbimento
- 5/120mA
- Dimensioni meccaniche
- 14.5 x 13mm
- Potenza RF
- 10.0dBm
- Sensibilità
- -140dBm
