RC-SPIRIT2-868

10,00 €
Tasse escluse

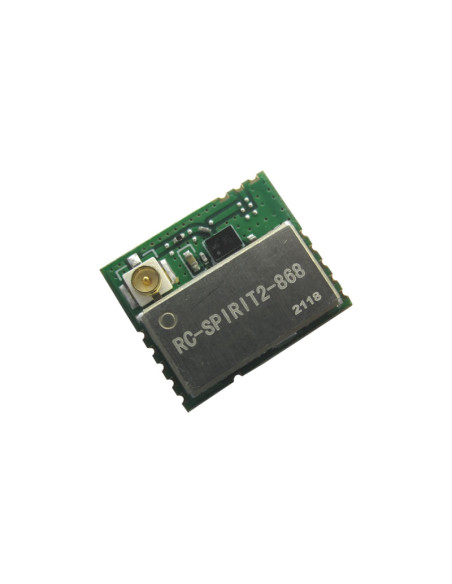

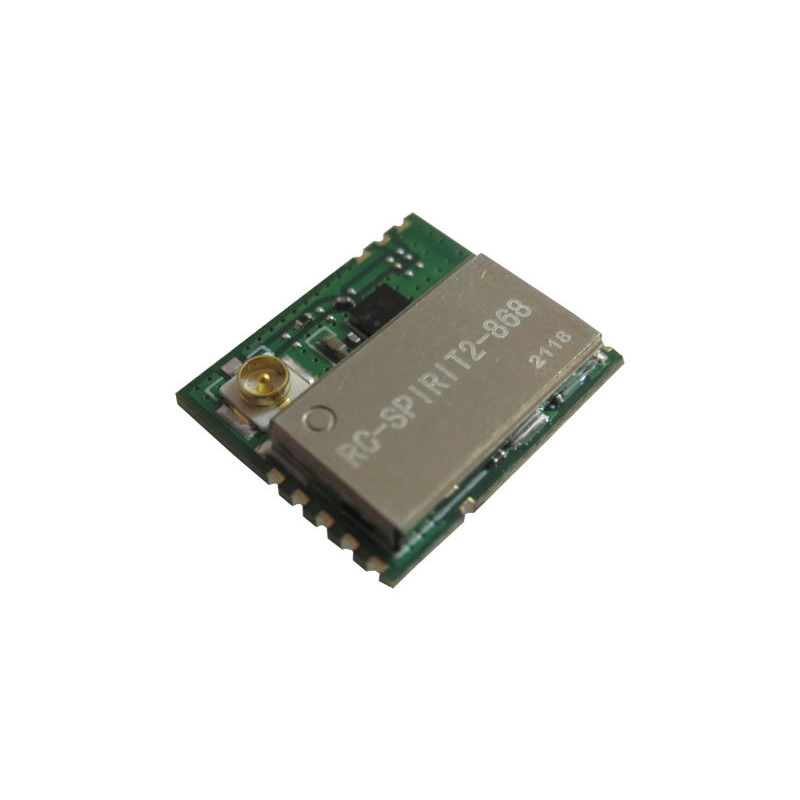

RC-SPIRIT2-868 module is based on STMicroelectronics S2-LP transceiver.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.
For more information and details, please refer to the S2-LP datasheet (www.st.com).

     datasheet.jpg                     Catalog.jpg


Sconti sul volume

Quantità Sconto unità Salva
10 10% 10,00 €
20 20% 40,00 €
Quantità
In stock

La quantità minima ordinabile per questo prodotto è 2.



Sicurezza del pagamento (direttamente su PayPal.com)



Consegna entro 3 giorni lavorativi



Cambio e Reso accettato (contattaci per approfondimenti)

sub 1GHz Multichannels Radio Transceiver S2LP based

RC-SPIRIT2-868 module is based on STMicroelectronics S2-LP transceiver.

Pin to pin compatible with the SPSGRF family modules manufactured from STMicroelectronics.

This device is a high performance ultra low power RF transceiver designed for RF wireless application in the sub 1GHz band.
The module is designed for maximum performance in a minimal space, with 4 programmable I/O pins.
Programmable from external microcontroller via SPI interface.

RF Balun used : BAL-SPI2-01D3

Ready for use SMD mounting (11.5 x 13.5mm) - Metal shield.
Operative Frequency Band: 868 MHz.

For more information and details, please refer to the S2-LP datasheet (www.st.com).

Using this module, it will be possible to easily update a product designed with Spirit1 technology (SPSGRF modules) with the new S2-LP device.

ScreenHunter_1615_Apr__29_14_55_jpg

ScreenHunter_1616_Apr__29_14_56_jpg

ScreenHunter_1617_Apr__29_14_56_jpg



100 Articoli

Scheda tecnica

Frequenza
868MHz
Tipo di Modulazione
ASK / FSK
Tensione di Alimentazione
1.8 - 3.6 Volt
Assorbimento
7.2/20mA
Dimensioni meccaniche
22 x 15mm
Potenza RF
-30dBm ÷ +16dBm
Sensibilità
-128dBm
