868MHz Wireless Actuator Board
search
  • 868MHz Wireless Actuator Board
  • 868MHz Wireless Actuator Board
  • 868MHz Wireless Actuator Board

868MHz Wireless Actuator Board

€70.00

868MHz Long Range Wireless Actuator

The kit is composed :

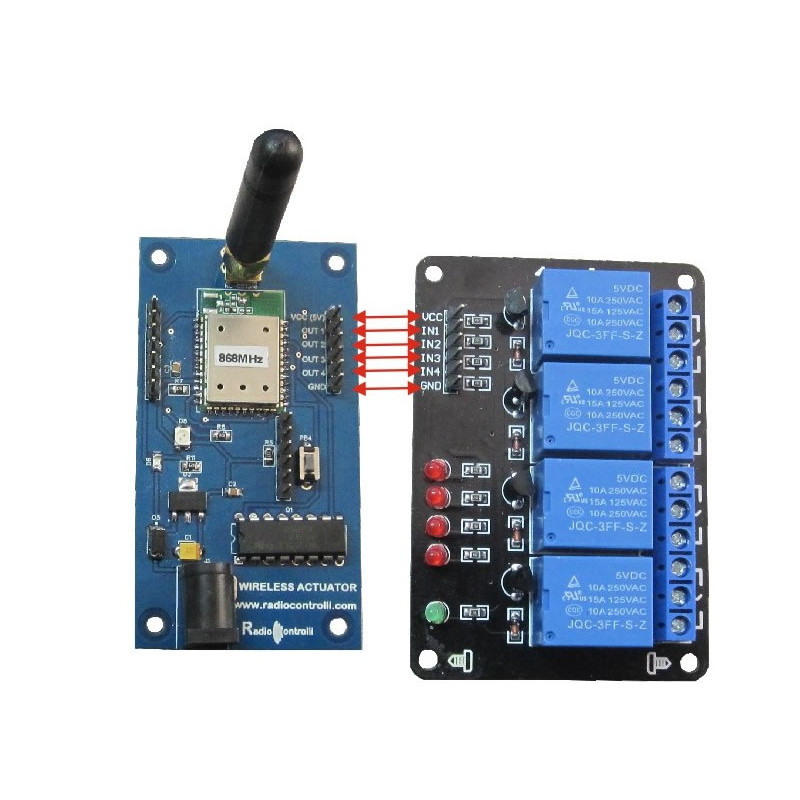

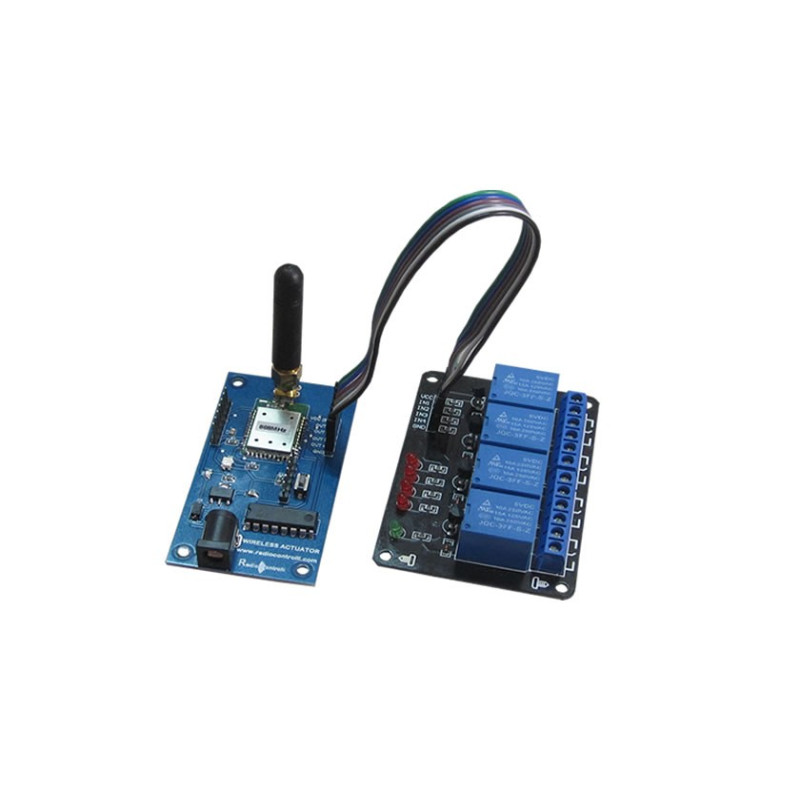

N.1  RCQ3-868-ACT   Actuator Board with 868MHz Antenna.

N.1  Relay Board  (4 Relay) with cable Female-Female

N.1  5 Volt Power Supply

     datasheet.jpg             Catalog.jpg

Volume discounts

Quantity Unit discount You Save
10 10% €70.00
20 20% €280.00
Quantity
Out-of-Stock

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

868MHz Wireless Actuator

Wireless Actuator for Home Automation

Wireless actuator for home automation, composed by  a TX unit controllable via RS232 serial interface and by one or more ACTUATOR units with the possibility to switch from a minimum of 4 up to a maximum of 256 devices (relays).  This wireless control system is designed for the most varied requirements in the field of Home automation, it can be used to activate all kinds of lighting,  as other applications, for example heating / cooling, electric gates, automatic doors and industrial controls. The TX unit can be controlled by a normal PC  by a Raspberry device or by an Arduino microcontroller.  It is possible to have a "point to point" configuration  (No.1 TX unit  - No.1 ACT unit) or a "point-multipoint" configuration (No. 1 TX unit more ACT  units ) up to the possibility of switching 256 users (relays ).

RCQ3-XXX-ACT Actuator board

This board allows to drive 4 relays both in monostable and bistable mode. It is possible use commercial relay board. Must be powered at 5Volt.

RCQ3-XXX-DK Gateway board

The TX unit is equipped with a USB-serial adapter (chip Prolific PL2303), this allows it to be used immediately connecting it to a standard PC or a Raspberry device and then sending simple RS232 commands.

Main characteristics :

- Bidirectional systems

- Sending via Rs232 of a switch command to the ACT unit, to switch N.4 relay in monostable or bistable mode.

- For each switch command sent the Gateway receive a feedback from the ACT.

- It is possible to know the state of the individual relay of a specific ACT unit anytime.

- It si possible to manage more ACT unit.

- Request the RSSI value.

- Request the remote configuration and remote battery value.

- Request the remote Temperature value.

This device can be supplied at the following frequencies :  433MHz - 868MHz - 915MHz



The main features of this bidirectional system are:

1) Sending via RS232 of an actuation command to one or more actuator card to actuate the 4 relays.

2) At each actuation command the actuator device sends the feedback relating to the operation performed.

3) It is possible at any time to know the status of the individual relays of a specific actuator card.

4) The relays can be managed in monostable mode and in bistable mode

5) Each actuator has a temperature sensor on board and it is possible to send a command, to know the temperature value of the individual  actuator.

For each device (gateway and actuator) it is necessary to set the following parameters:

- LOCAL ADDRESS: Device address

- DESTINATION ADDRESS: Address of the device to which you want to

  connect.

Each device is preconfigured with a default address "7E 7E 7E 7E" this address can be changed or via RS232 commands.

Data sheet

Frequency
868MHz
Modulation
GFSK2
Comments (0)
No customer reviews for the moment.
