Evaluation kit for RC-WuTRX-434

€160.00

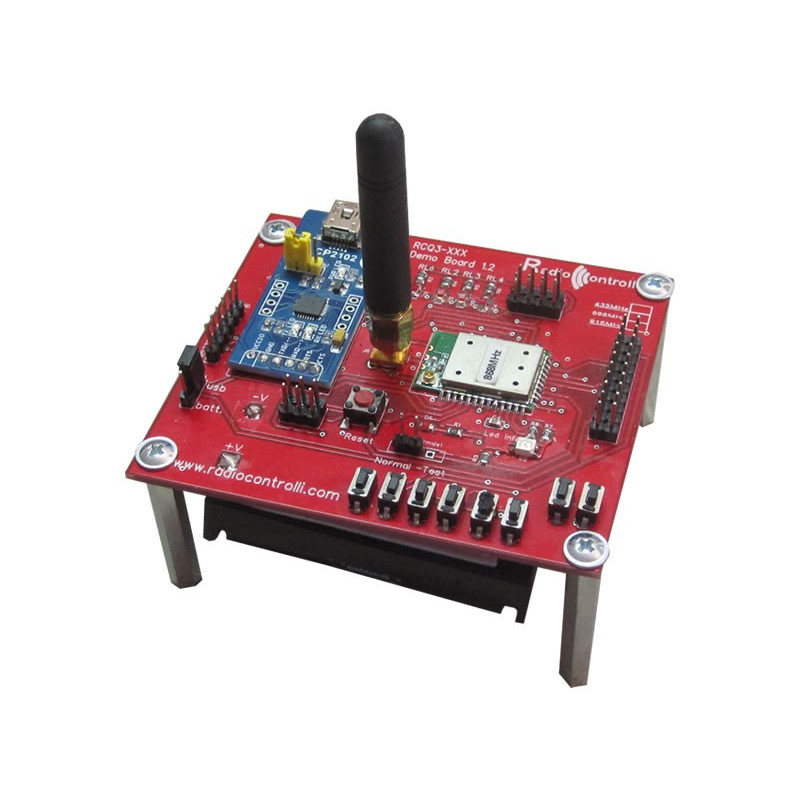

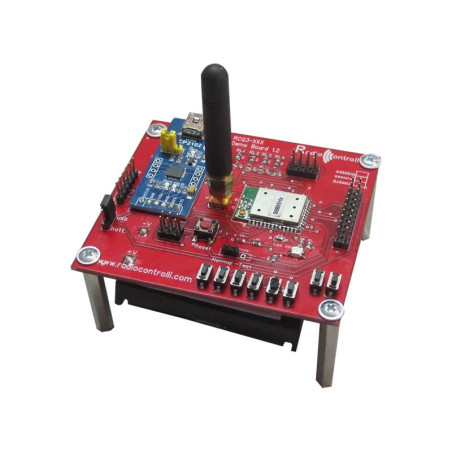

Evaluation kit for RC-WuTRX-434

Conposed from :

- N.2 Evaluation Board RC-WuTRx-434  + connection cable + Antenne

     datasheet.jpg            Catalog.jpg

Volume discounts

Quantity Unit discount You Save
10 10% €160.00
20 20% €640.00
Quantity
In stock

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ultra Low Power WakeUp Transceiver allow to optimaze the power consumption for IoT application.
It’s a transceiver module that uses «wake up receiver tecnique» to be used in very low consumption applications.The WakeUp-Receiver continuously monitors the wireless channel (without the use of a microcontroller) and recognizes if there are any radio signals addressed to him, in this case it returns the data received on the serial interface.
The device wakes up every 1000ms (this time is programmable) for a time of 250µsec.
In this conditions the average of the consumption is 10µA with a Sensibility of -110dBm.

The device RC-WuTRx-434 is based on the CC1310 device from Texas Instrument.

4 Items

Data sheet

Frequency
434MHz
Modulation
GFSK2
Supply Voltage
2.2 - 3.6 Volt
Consumption
10µA ÷ 1.2mA
Dimension
22 x 15.0mm
RF Power Output
+14dBm
Sensitivity
-110dBm
