RCRX-434-L
€4.50
Tax excluded

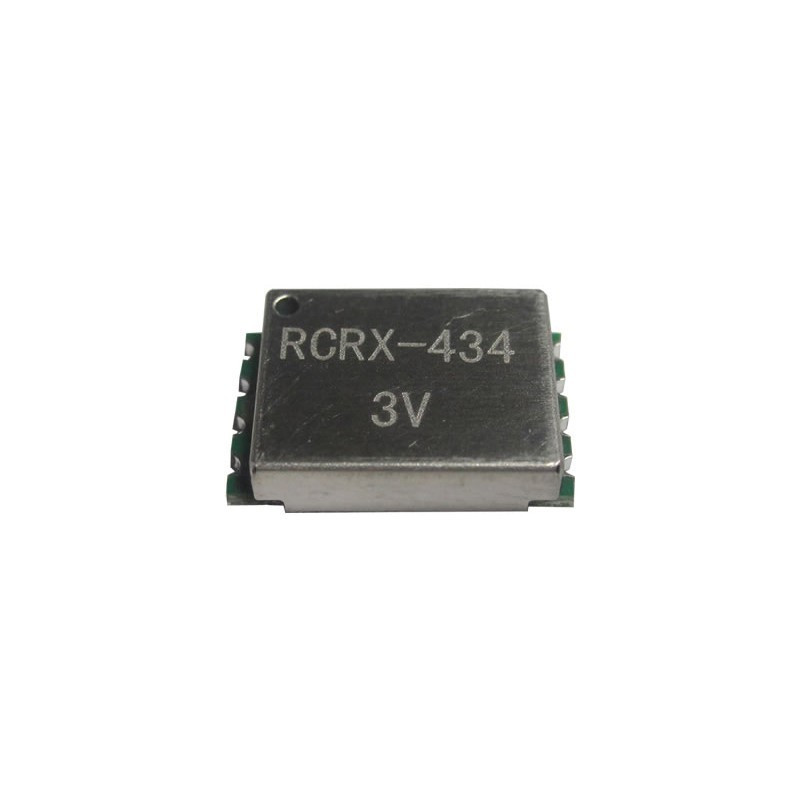

RCRX-434-L
433.92MHz AM Superhet Receiver
RCRX-434-L is an AM superhet data receiver with PLL sinthesizer and crystal oscillator. ASK/OOK modulation. Standard European pin out . SMD Mounting . Miniaturized version. 3 Volt
 |
 |
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
433.92MHz AM Superhet Receiver
RCRX-434-L is an AM superhet data receiver with PLL sinthesizer and crystal oscillator. ASK/OOK modulation. Metallic shield . SMD Mounting . Available 3Volt and 5Volt version.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 3.0 | 3.6 | Volt | |
| Current Consumption (RX Mode) | 5.5 | mA | ||
| Current Consumption (Shut Down Mode) | 1 | µA | ||
| RF Sensitivity | -108 | dBm | ||
| Max Data Rate | 10 | Kbit/s | ||
| RF Bandwidth 3dB | 600 | KHz | ||
| Operating Temperature Range | -20 | +80 | °C |
PIN DESCRIPTION
| Pads | Name | Description |
| 1 | ANT | External Antenna |
| 2 | GND | Ground |
| 3 | GND | Ground |
| 4 | PD | Power Down |
| 5 | DOUT | Data Out |
| 6 | GND | Ground |
| 7 | GND | Ground |
| 8 | VCC | Power Supply |
92 Items
Data sheet
- Frequency
- 433.92MHz
- Modulation
- ASK (AM)
- Supply Voltage
- 3.0 - 3.6 Volt
- Consumption
- 5.5mA
- Dimension
- 14 x 9.5mm
- Compliance
- ETSI EN 300 220
- Sensitivity
- -108dBm
