868MHz Spring Antenna

In stock
€3.50
Tax excluded

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
11 €0.50 €5.50
21 €0.80 €16.80
51 €1.20 €61.20


868MHz Spring Antenna

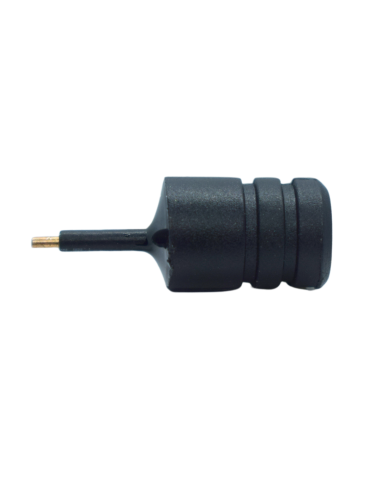

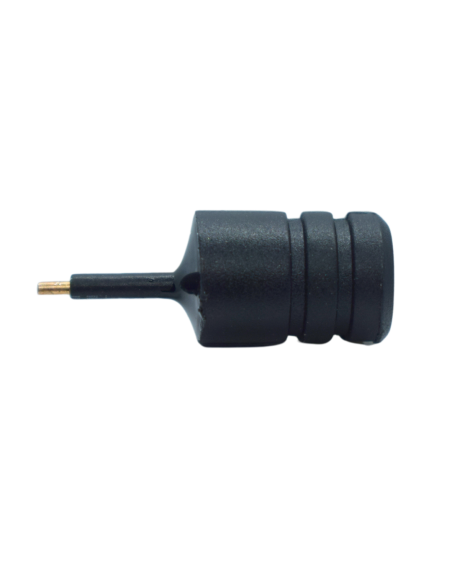

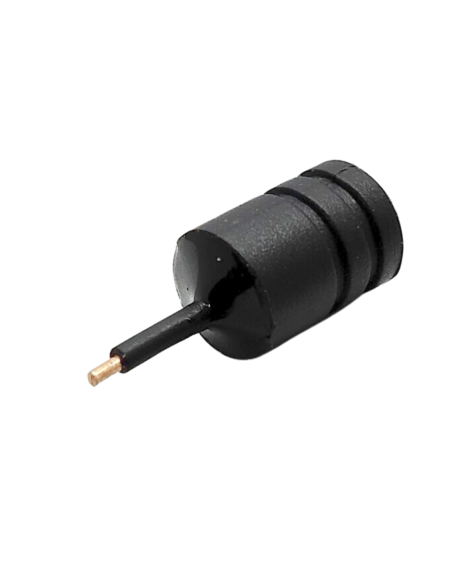

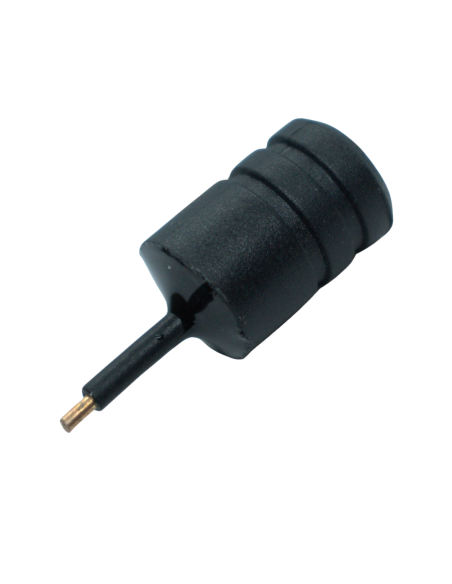

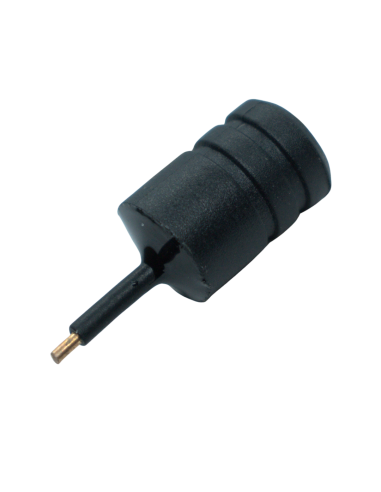

RC-ANT-868-BE It is a spring helical antenna that can be used for 868MHz wireless data transmission/measurement communication system. Compact PCB mounting solution where high performance is required from small space. Good VSWR performance, compact size, intelligent structure, easy installation, stable performance, with good anti-vibration and aging ability.



Characteristics Value
Frequency range 855÷890MHz
Frequency Center 868MHz
VSWR <= 2.0
Impedence 50 Ohm
Gain 2.15dBi
Diameter 7mm ± 0.5mm
Lenght 11mm ± 0.5mm
Antenna Radom Material TPE

DATASHEET

Frequency
868MHz
Lenght
11mm±0.5mm
Gain
2.15dBi
Impedence
50 Ohm
