RC-ANT-2.4-SMA

€6.00

2.4GHz WiFi Swivel Antenna with SMA Connector

Volume discounts

Quantity Unit discount You Save
20 10% €12.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

2.4GHz WiFi Swivel Antenna with SMA Connector

RC-ANT-2.4-SMA is an antenna that can be used for WiFi wireless data transmission / meter communication systems.
Good VSWR performance, compact dimensions, clever structure, easy installation, stable performance, with good anti-vibration and aging capacity.



Characteristics  Value
Frequency range  2400MHz÷2500MHz
Band Width 100MHz
Gain 2.5dBi
VSWR <=1.5
Radiation Omni Direction
Polarization Vertical
Maximum Input Power 5W
Impedence  50 Ohm
Connector SMA Male
Antenna Radome Material TPE

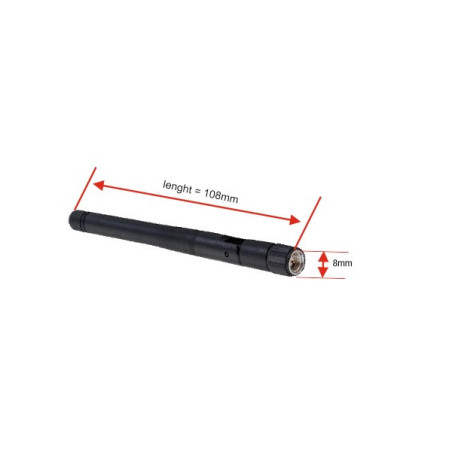

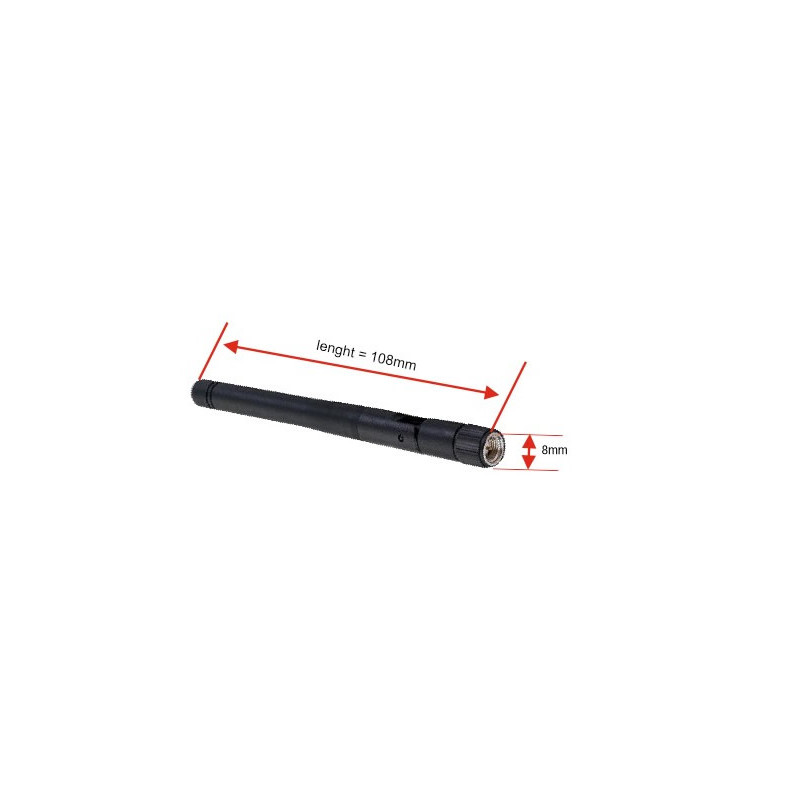

Dimension 108mm / 8mm
ROHS Compliance  YES
50 Items

Data sheet

Frequency
2400÷2500MHz
Lenght
108mm
Gain
2.5dBi
Impedence
50 Ohm
