Conposto da :

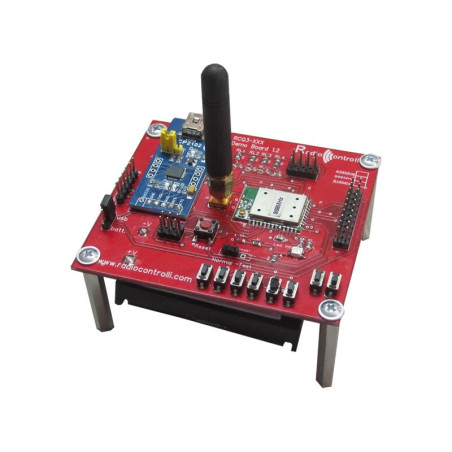

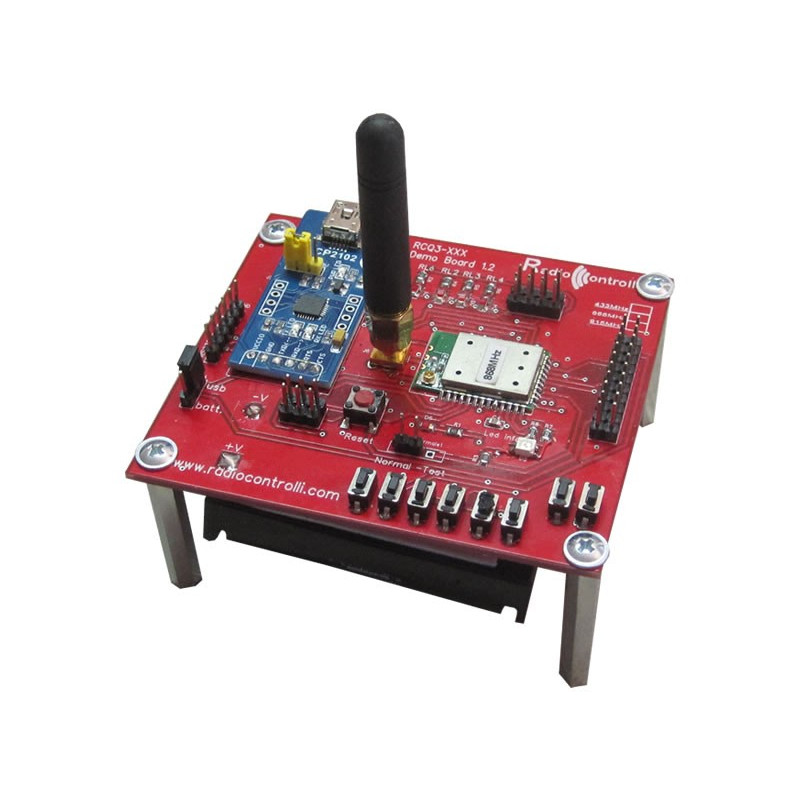

- N.2 Evaluation Board RCQ3-915MHz complete di cavi ed Antenne
 |
 |
The functionality of the device RCQ3-915 are the following :
- Wireless Switch ( distance >1000meters in open field)
The 4 Output of MODULE A (RL1,RL2,RL3,RL4) corrisponding to the 4 Input of MODULE B (K1,K2,K3,K4), the 4 Output of the MODULE B corrsiponding to the 4 Input of the MODULE A.
- Wireless Actuator ( distance >1000meters in open field)
Wireless actuator for home automation, it’s possible use 1 unit as Transmitter (controllable via Rs232 serial interface) and by one or more RX units with the possibility to switch 4 channels in bistable or monostable mode for every RX units.The unit denominated used ad Transmitter can be controlled by a normal PC by a Raspberry device or by an Arduino microcontroller. It is possible to have a "point to point" configuration (No.1 TX unit - No.1 RX unit) or a "point-multipoint" configuration (No. 1 TX unit more RX Unit). It is also possible to monitor the status of the 4 inputs of the remote units S1, S2, S3, S4.
- Wireless Controller ( distance >1000meters in open field)
It’s an 4 channels wireless controller module with pairing function, it’s possible to control and verify the logic state (open or close) of the Remote Module.
To verify the main functionality of this module, you can see the following video :
