RC-RFSK3-868

€12.00
Availability:
In stock
Reference:

RC-RFSK3-868

868.35 MHz FSK Superhet Receiver 4.8kbit/s

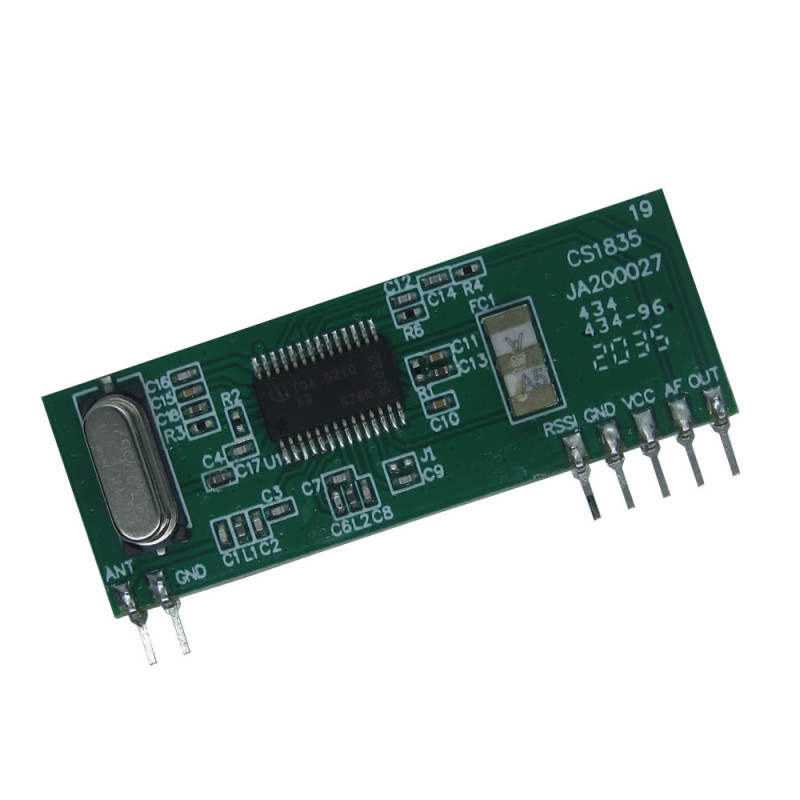

RC-RFSK3-XXX is an FSK Radio Receiver Module with
PLL Synthesizer and crystal oscillator.
Single Line Package with power down mode and RSSI Output.

Volume discounts

Quantity Discount You Save
10 10% Up to €12.00
20 20% Up to €48.00
Qty:

The minimum purchase order quantity for the product is 2.

Print

868.35 MHz FSK Radio Receiver Module

RC-RFSK3-868 is an FSK Radio Receiver module with PLL synthesizer and crystal oscillator, single line package with Power down mode and RSSI output.

Technical Characteristics MIN TYP MAX UNIT
Supply Voltage 4.5 5.5 Volt
Current Consumption (TX Mode) 5.7 6.8 mA
Current Consumption (Standby mode) 100 nA
Frequency 868.35 MHz
Max Data Rate 4.8 Kbit/s
RF Sensitivity -100 dBm
3dB Bandwith ±150 KHz
Level of emitted spectrum
70 dBm
Power Up Timer (from Power on to RF)
8 ms
Power Up Timer (from EN to RF) 5 ms
Operating Temperature range -25 +80 °C
Mechanical Dimensions 46 x 16.4mm

Pads Name Description
1 IN ANTENNA
2 GND Ground
14 RSSI Received Signal Strenght Output
15 GND Ground
16 VCC Power
17 AF AF Output
18 OUT Data Out
9 Items

Data sheet

Frequency
868.35MHz
Modulation
FSK
Supply Voltage
4.5 - 5.5 Volt
Consumption
5.7mA
Dimension
46 x 16.4mm
Sensitivity
-100dBm
