RCS1KPA-868

€34.00
Availability:
In stock
Reference:

RCS1KPA-868

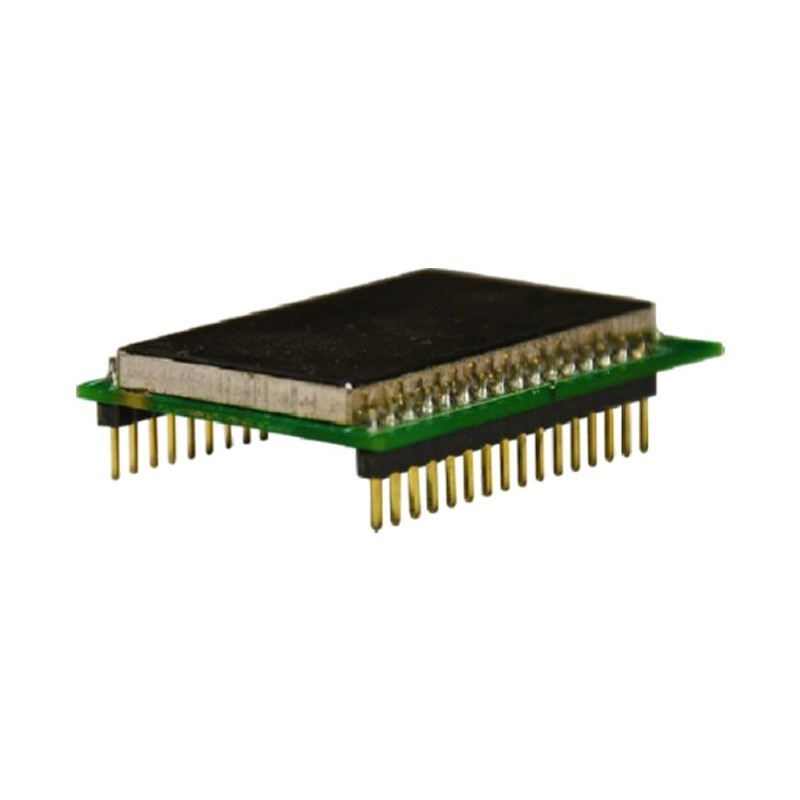

Sub 1 GHz Multichannels Radio Transceiverwith SMA Connector

It is a low cost sub 1 GHz transceiver multchannels transceiver designed for low-consumption wireless applications. The hardware is based on Silicon Labs Si1000 component and RFAXIS RFX1010 component.

Volume discounts

Quantity Discount You Save
10 10% Up to €34.00
20 20% Up to €136.00
Qty:

The minimum purchase order quantity for the product is 2.

Print
TAG: Si1000 transceiver Silicon Labs Transceiver

Sub 1GHz Multichannel      Radio Transceiver Hi-Power It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Silicon Labs Si1000 component and RFAXIS RFX1010 component. The main features of this device are: Output power up to +27 dBm (500mWatt) Microcontroller Integrated (8051core), modulation selectable  (OOK, FSK, GFSK), low power consumption.



Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  3.0   3.60 Volt
 Supply Current (TX mode / +27dBm)     350    mA
 Supply current sleep mode    <0.1    µA
 StartUp Time (Sleep to RX/TX mode)     <2   µs
 RF Output Power    +27   dBm
 RF Sensitivity (1.2 Kb/sec Data Rate)
   -112     dBm
 Max Data Rate
    500    Kbit/s
 Operating Temperature range -10   +55 °C
Mechanical Dimensions  27 x 39mm





Pads  Name  Description
 1  NU  Not Used
 2  NU  Not used
 3  GND  Ground
 4  VCC  Power Supply
 5  VCC  Power Supply
 6  P07  Digital I/O or Analog Input
 7  P06  Digital I/O or Analog Input
 8  P05  Digital I/O or Analog Input
 9  P04  Digital I/O or Analog Input
 10  P03  Digital I/O or Analog Input
 11  P02  Digital I/O or Analog Input
 12  P01  Digital I/O or Analog Input
 13  P00  Digital I/O or Analog Input
 14  VCC  Power Supply
 15  GND  Ground
 16  GND  Ground
 17  RST  Device reset
 18  P27  Digital I/O or Analog Input
 19  P26  Digital I/O or Analog Input
 20  P25  Digital I/O or Analog Input
 21  P24  Digital I/O or Analog Input
 22  P23  Digital I/O or Analog Input
 23  P22  Digital I/O or Analog Input
 24  P21  Digital I/O or Analog Input
 25  P20  Digital I/O or Analog Input
 26  P17  Digital I/O or Analog Input
 27  P16  Digital I/O or Analog Input
 28  P15  Digital I/O or Analog Input
 29  NIRQ  EZRadioPro peripheral interrupt status pin
 30  SDN  EZRadioPro peripheral shutdown pin
 31  NU  Not used
 32  NU  Not Use





10 Items

Data sheet

Frequency
868MHz
Modulation
ASK / FSK
Supply Voltage
3.0 - 3.6 Volt
Consumption
350mA
Dimension
39 x 27mA
RF Power Output
+27dBm
Sensitivity
-112dBm

Download

Datasheet RCS1KPA-868

Download (210.77k)
