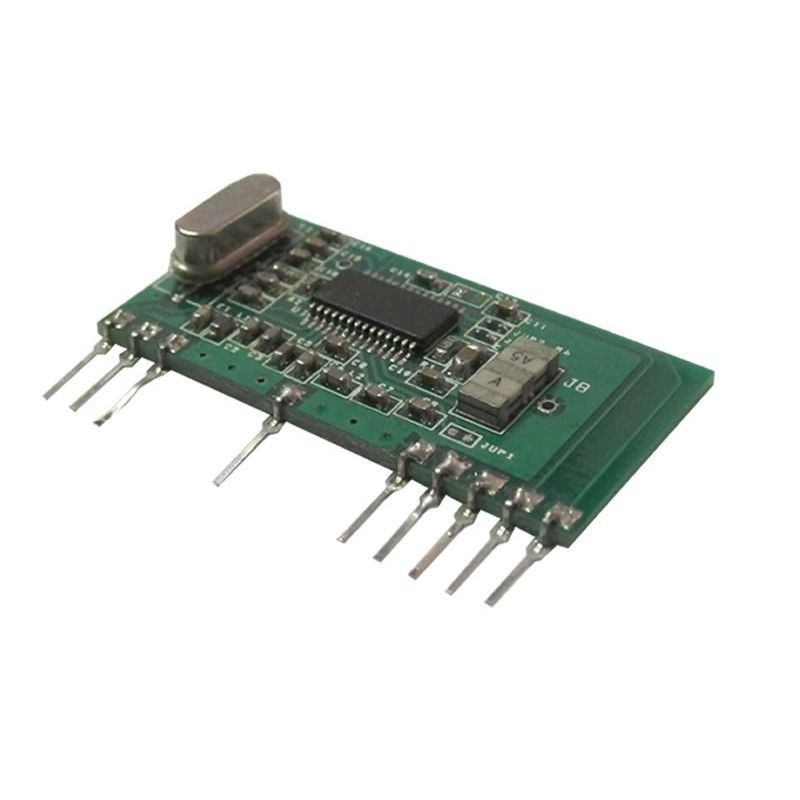

RC-RFSK1-434

€12.00

RC-RFSK1-434

433.92MHz FSK Superhet Receiver

RC-RFSK1-434 is an FSK Radio Receiver Module with PLL Synthesizer and crystal oscillator. Single line package with power down mode and RSS1 Output.

Volume discounts

Quantity	Unit discount	You Save
10	10%	€12.00
20	20%	€48.00

Quantity

In stock

The minimum purchase order quantity for the product is 2.

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

433.92MH FSK Radio Receiver Module

RC-RFSK1-434 is an FSK Radio Receiver module with PLL synthesizer and crystal oscillator, single line package with Power down mode and RSSI output.

Mechanical Dimensions : 18.33 x 38.10mm
Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	4.5		5.5	Volt
Current Consumption (TX Mode)		5.7	6.8	mA
Current Consumption (Standby mode)			100	nA
Frequency		433.92		MHz
Max Data Rate			4.8	Kbit/s
RF Sensitivity		-102		dBm
3dB Bandwith		±150		KHz
Level of emitted spectrum			70	dBm
Power Up Timer (from Power on to RF)			8	ms
Power Up Timer (from EN to RF)			5	ms
Operating Temperature range	-25		+80	°C

Pads	Name	Description
1	VCC	Power Supply
2	GND	Ground
3	ANT	Antenna
7	GND	Ground
11	GND	Groud
12	NC	Not used
13	RSSI	Received Signal Strenght Output
14	OUT	Data Out
15	PD	Power Down
