RC-TFSK4-434
€8.00

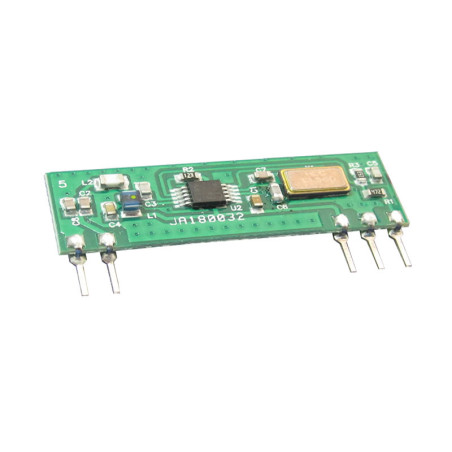

RC-TFSK4-434433.92MHz Radio Transmitter module with crystal oscillator, FSK Modulation
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
433.92MH FSK Radio Transmitter Module
RC-TFSK4-434 is an FSK Radio tranmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output power 0 10dBm.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 2.4 | 3.6 | Volt | |
| Current Consumption (TX Mode) | 14.5 | 15.5 | mA | |
| Current Consumption (Standby mode) | 100 | nA | ||
| Frequency | 433.92 | MHz | ||
| Max Data Rate | 40 | Kbit/s | ||
| RF Output Power | 8 | 10 | dBm | |
| Frequency Accuracy | -35 | +35 | KHz | |
| FM Deviation | 25 | 30 | 35 | KHz |
| Power Up Timer (from Power on to RF) |
5 | ms | ||
| Power Up Timer (from EN to RF) | 1 | ms | ||
| Operating Temperature range | -25 | +80 | °C | |
| Mechanical Dimensions 30.50 x 10.30mm |
| Pads | Name | Description |
| 1 | GND | Ground |
| 2 | ANT | Antenna |
| 3 | VCC | Power Supply |
| 4 | GND | Ground |
| 5 | IN | Data In |
78 Items
Data sheet
- Frequency
- 433.92MHz
- Modulation
- FSK
- Supply Voltage
- 2.4 - 3.6Volt
- Consumption
- 14.5mA
- Dimension
- 30.50 x 10.30mm
- RF Power Output
- 10dBm
