RCS1KSMT-434

€16.00
Availability:
In stock
Reference:

RCS1KSMT-434

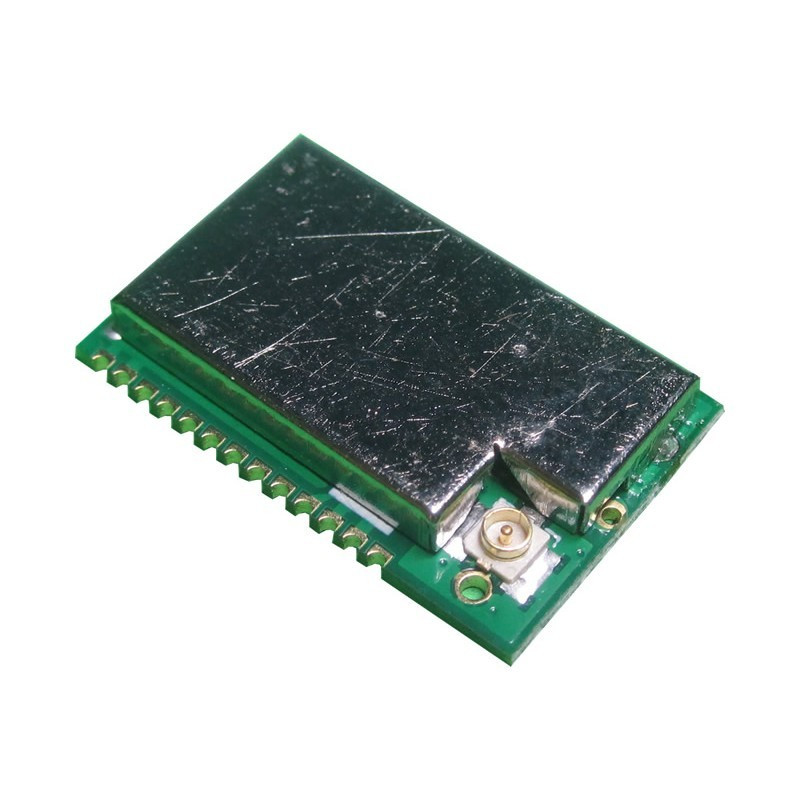

Sub 1 GHz Multichannels Radio Transceiverwith SMA Connector

It is a low cost sub 1 GHz transceiver multchannels transceiver designed for low-consumption wireless applications. The hardware is based on Silicon Labs Si1000 component. SMD Version.

Volume discounts

Quantity Discount You Save
10 10% Up to €16.00
20 20% Up to €64.00
Qty:

The minimum purchase order quantity for the product is 2.

Print
TAG: Si1000 transceiver Silicon Labs Transceiver

Sub 1GHz Multichannel Radio Transceiver with Hirose antenna connector It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Silicon Labs Si1000 component. The main features of this device are: Output power up to +20 dBm (100mWatt) Microcontroller Integrated (8051core), modulation selectable (OOK, FSK, GFSK), low power consumption.



Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  2.2  3.0 3.60 Volt
 Supply Current (RX mode/TX Mode)   20/34    mA
 Supply Current (TX mode / +20dBm)   85    mA
 Supply Current (TX mode / +0dBm)     10    mA
 Supply current sleep mode    <0.1    µA
 StartUp Time (Sleep to RX/TX mode)     <2   µs
 RF Output Power -3.0    +20 dBm
 RF Sensitivity (1.2 Kb/sec Data Rate)
   -112     dBm
 Max Data Rate
    500    Kbit/s
 Operating Temperature range -10   +55 °C
Mechanical Dimensions  15 x 23.52mm



Pads  Name  Description
 1  NIRQ  EZRadioPRO peripheral interrupt status pin
 2  SDN  EZRadioPRO peripheral shtdown pin
 3  P15  Digital I/O or Analog Input
 4  P16  Digital I/O or Analog Input
 5  P17  Digital I/O or Analog Input
 6  P07  Digital I/O or Analog Input
 7  P06  Digital I/O or Analog Input
 8  P05  Digital I/O or Analog Input
 9  P04  Digital I/O or Analog Input
 10  P03  Digital I/O or Analog Input
 11  P02  Digital I/O or Analog Input
 12  P01  Digital I/O or Analog Input
 13  P00  Digital I/O or Analog Input
 14  GND  Ground
 15  GND  Ground
 16  P27  Digital I/O or Analog Input
 17  P26  Digital I/O or Analog Input
 18  P25  Digital I/O or Analog Input
 19  P24  Digital I/O or Analog Input
 20  P23  Digital I/O or Analog Input
 21  P22  Digital I/O or Analog Input
 22  P21  Digital I/O or Analog Input
 23  RST/C2CK  Device reset / C2 Debug interface
 24  VCC  Power Supply
 25  VCC  Power Supply
 26  P20  Digital I/O or Analog Input











100 Items

Data sheet

Frequency
433MHz
Modulation
ASK / FSK
Supply Voltage
2.2 - 3.6 Volt
Consumption
20/34mA
Dimension
23.52 x 15.0mA
RF Power Output
+20dBm
Sensitivity
-112dBm

Download

Datasheet RCS1KSMT-434

Download (587.73k)
