RCS1K-868

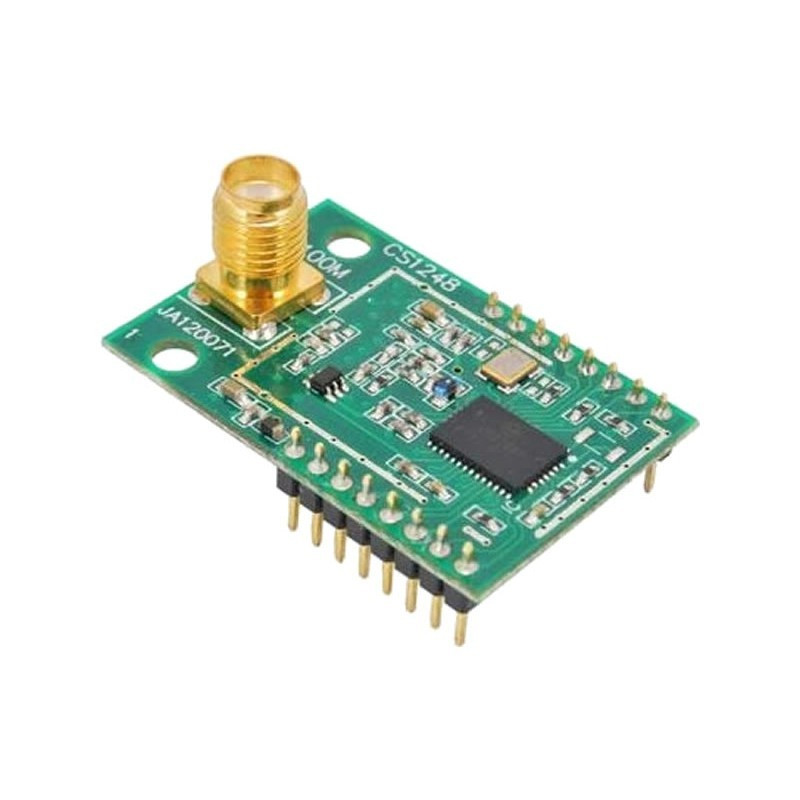

Sub 1 GHz Multichannels Radio Transceiverwith SMA Connector
It is a low cost sub 1 GHz transceiver multchannels transceiver designed for low-consumption wireless applications. The hardware is based on Silicon Labs Si1000 component.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on a Silicon Labs Si1000 component. The main features of this device are: Output power up to +20 dBm (100mWatt) Integrated Microcontroller (8051core), selectable modulation (OOK, FSK, GFSK), low power consumption.
| Technical Characteristics | MIN | TYP | MAX | UNIT |
| Supply Voltage | 2.2 | 3.0 | 3.60 | Volt |
| Supply Current (RX mode/TX Mode) | 20/34 | mA | ||
| Supply Current (TX mode / +20dBm) | 85 | mA | ||
| Supply Current (TX mode / +0dBm) | 10 | mA | ||
| Supply current sleep mode | <0.1 | µA | ||
| StartUp Time (Sleep to RX/TX mode) | <2 | µs | ||
| RF Output Power | -3.0 | +20 | dBm | |
| RF Sensitivity (1.2 Kb/sec Data Rate) | -112 | dBm | ||
| Max Data Rate | 500 | Kbit/s | ||
| Operating Temperature range | -10 | +55 | °C | |
| Mechanical Dimensions 21.50 x 32.40mm |
| Pads | Name | Description |
| 1 | VCC | Power Supply |
| 2 | GND | Ground |
| 3 | RST | Device reset |
| 4 | RXD | UART TXD |
| 5 | TXD | UART RXD |
| 6 | P02 | Digital I/O or Analog Input |
| 7 | P01 | Digital I/O or Analog Input |
| 8 | P00 | Digital I/O or Analog Input |
| 9 | P27 | Digital I/O or Analog Input |
| 10 | P21 | Digital I/O or Analog Input |
| 11 | P17 | Digital I/O or Analog Input |
| 12 | P16 | Digital I/O or Analog Input |
| 13 | P15 | Digital I/O or Analog Input |
| 14 | PROG | Programming |
| 15 | P07 | Digital I/O or Analog Input |
| 16 | P06 | Digital I/O or Analog Input |
41 Items
Data sheet
- Frequency
- 868MHz
- Modulation
- ASK / FSK
- Supply Voltage
- 2.2 - 3.6 Volt
- Consumption
- 20/34mA
- Dimension
- 32.4 x 21.5mA
- RF Power Output
- +20dBm
- Sensitivity
- -112dBm
