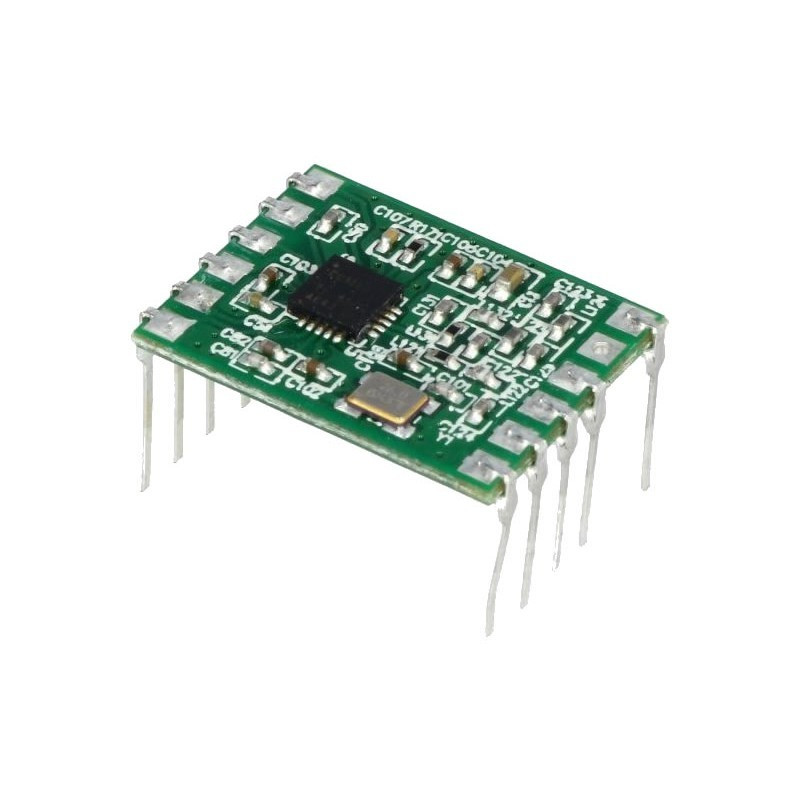

RC-CC1101-SPI-868

€9.00
Availability:
In stock
Reference:

RC-CC1101-SPI-868

Sub 1 GHz Multichannels Radio Transceiver

It is a low cost sub 1 GHz transceiver multchannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component.

Volume discounts

Quantity Discount You Save
10 10% Up to €9.00
20 20% Up to €36.00
Qty:

The minimum purchase order quantity for the product is 2.

Print

Sub 1GHz Multichannels Radio Transceiver

 It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component. Programmable from external microcontroller via SPI interface.
Working frequency programmable in the following band : 868MHz
Feature :
For more information and details, please refer to the CC1101 Texas Instruments datasheet.
- Wireless security systems - Home and building automation - Automatic Measure Reading - Industrial Control and Monitoring - Wireless Sensor Network Applications :
- Bidirectional multichannel Link - Low consumption technology - DIL Package .



Mechanical Dimensions : 15.60 x 21.50mm
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  1.8  3.0 3.60 Volt
 Current Consumption (RX mode/TX Mode)   18/30 6.8  mA
 Current Consumption Power down mode   0.2     µA
 Frequency     868MHz    MHz
 RF Power Output 50ohm    +10    dBm
 RF Sensitivity (1.2 Kb/sec data rate)     -112   dBm
 Data Rate 1.2    500    Kbit/s
 Tolerance Receiver Frequency
  ±1.5     KHz
 Frequency deviation
  ±1.5   ±380 KHz
 Operating Temperature range -20   +70 °C



Pads  Name  Description
 1  SI  Serial configuraion interface SPI ----> Data Input
 2  SCLK  Serial configuration interface SPI ----> Clock Input
 3  S0  Serial configuration interface SPI -----> Data Output
 4  GD02  Digital Output configurable
 5  GD00  Digital Output configurable
 6  CSn  Serial configuration interface SPI  -----> Cgip Select
 7  GND  Ground
 8  GND  Ground
 9  GND  Ground
 10  ANT  Antenna

 12  VCC  Power Supply
98 Items

Data sheet

Frequency
868MHz
Modulation
ASK / FSK
Supply Voltage
1.8 - 3.6 Volt
Consumption
18/30mA
Dimension
21.50 x 15.60mm
RF Power Output
+10dBm
Sensitivity
-112dBm
