Sub 1 GHz Multichannels Radio Transceiver

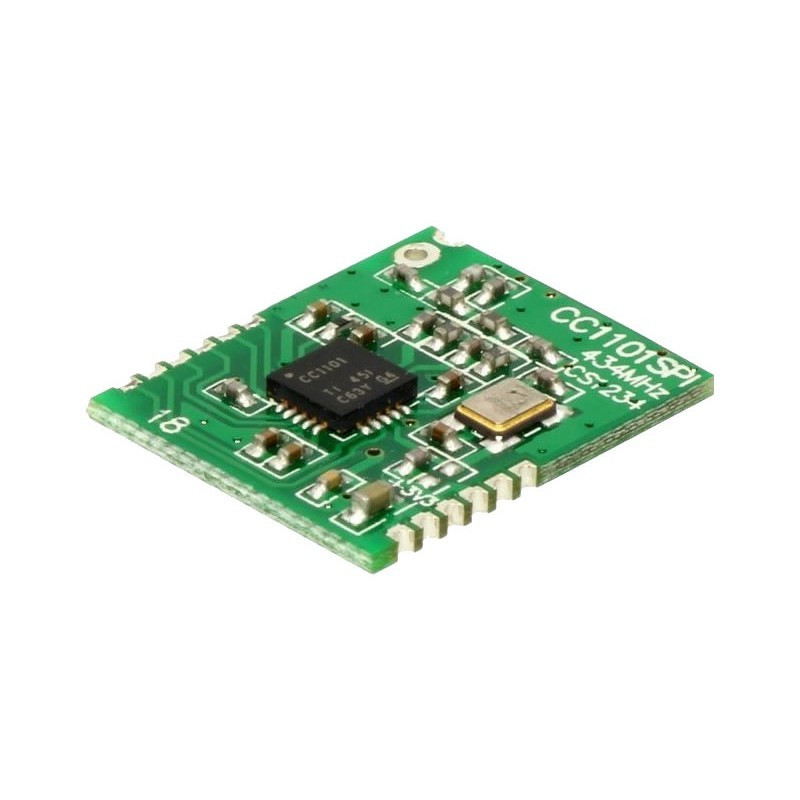

It is a low cost sub 1 GHz transceiver multchannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component.

     datasheet.jpg                     Catalog.jpg

Volume discounts

Quantity Unit discount You Save
10 10% €9.00
20 20% €36.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Sub 1GHz Multichannels Radio Transceiver

 It is a low cost sub 1GHz multichannels transceiver designed for low-consumption wireless applications. The hardware is based on Texas Instruments CC1101 component. Programmable from external microcontroller via SPI interface.
Working frequency programmable in the following band : (433.1MHz - 434.7MHz).
Feature :
For more information and details, please refer to the CC1101 Texas Instruments datasheet.
- Wireless security systems - Home and building automation - Automatic Measure Reading - Industrial Control and Monitoring - Wireless Sensor Network Applications :
- Bidirectional multichannel Link - Low consumption technology - DIL Package .



Mechanical Dimensions :  15 x 18mm
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  1.8  3.0 3.60 Volt
 Current Consumption (RX mode/TX Mode)   18/30 6.8  mA
 Current Consumption Power down mode   0.2     µA
 Frequency     433.92    MHz
 RF Power Output 50ohm    +10    dBm
 RF Sensitivity (1.2 Kb/sec data rate)     -112   dBm
 Data Rate 1.2    500    Kbit/s
 Tolerance Receiver Frequency
  ±1.5     KHz
 Frequency deviation
  ±1.5   ±380 KHz
 Operating Temperature range -20   +70 °C



Pads  Name  Description
 1  SI  Serial configuraion interface SPI ----> Data Input
 2  SCLK  Serial configuration interface SPI ----> Clock Input
 3  S0  Serial configuration interface SPI -----> Data Output
 4  GD02  Digital Output configurable
 5  GD00  Digital Output configurable
 6  CSn  Serial configuration interface SPI  -----> Cgip Select
 7  VCC  Power Supply
 8  VCC  Power Supply
 9  GND  Ground
 10  GND  Ground
 11  NC  Not used
 12  NC  Not Used
100 Items

Data sheet

Frequency
433MHz
Modulation
ASK / FSK
Supply Voltage
1.8 - 3.6 Volt
Consumption
18/30mA
Dimension
18 x 15mm
RF Power Output
10dBm
Sensitivity
-112dBm
