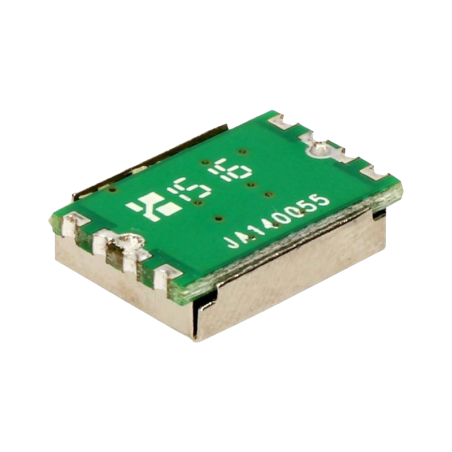

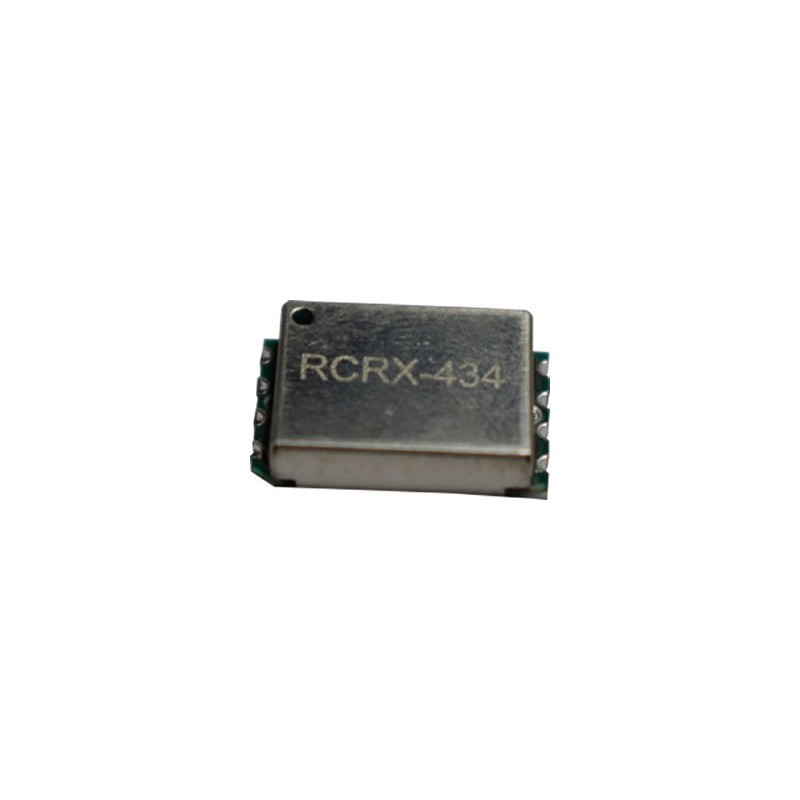

RCRX-434

 433.92MHz AM Superhet Receiver

 RCRX-434  is an AM superhet data receiver with PLL sinthesizer and crystal oscillator.  ASK/OOK modulation. Standard European pin out . SMD Mounting . Miniaturized version. 5 Volt

     datasheet.jpg              Catalog.jpg

Volume discounts

Quantity Unit discount You Save
10 10% €4.50
20 20% €18.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)



433.92MHz AM Superhet Receiver

 RCRX-434 is an AM superhet data receiver with PLL sinthesizer and crystal oscillator.  ASK/OOK modulation. Metallic shield .  SMD Mounting . Available 3Volt and 5Volt version.

Mechanical Dimesions : 9.5 x 14mm
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  4.4    5.0 Volt
 Current Consumption (RX Mode)    5.5    mA
 Current Consumption (Shut Down Mode)    1    µA
 RF Sensitivity    -108    dBm
Max Data Rate   10   Kbit/s
RF Bandwidth 3dB   600   KHz
Operating Temperature Range -20   +80 °C



PIN DESCRIPTION

Pads  Name  Description
 1  ANT  External Antenna
 2  GND  Ground
 3  GND  Ground
4  PD Power Down
5  DOUT Data Out
6 GND Ground
7 GND Ground
8 VCC Power Supply
100 Items

Data sheet

Frequency
433.92MHz
Modulation
ASK (AM)
Supply Voltage
4.4 - 5.0 Volt
Consumption
5.5mA
Dimension
14 x 9.5mm
Compliance
ETSI EN 300 220
Sensitivity
-108dBm
