 433.92MHz AM Superhet Receiver

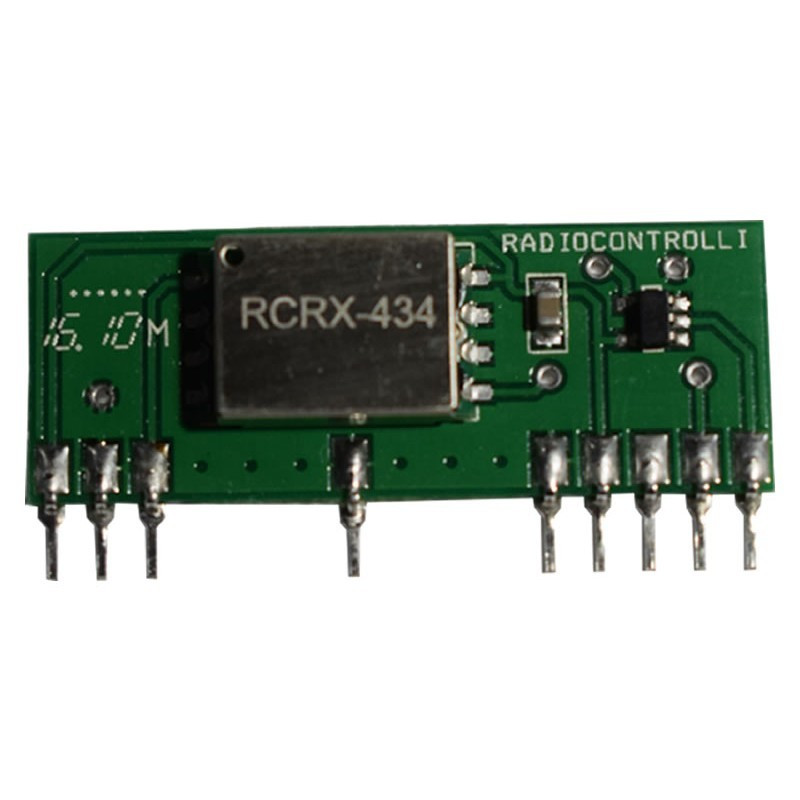

 RCBRX-434  is an AM superhet data receiver with PLL sinthesizer and crystal oscillator.  ASK/OOK modulation. Standard European pin out . PTH Mounting .

     datasheet.jpg              Catalog.jpg


Volume discounts

Quantity Unit discount You Save
10 10% €6.00
20 20% €24.00
Quantity
In stock

The minimum purchase order quantity for the product is 2.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

 433.92MHz AM Superhet Receiver

 RCBRX-434 is an AM superhet data receiver with PLL sinthesizer and crystal oscillator.  ASK/OOK modulation. Metallic shield .  Standard European pin out . PTH Mounting . Available 3Volt and 5Volt version.

Mechanical Dimension : 38 x 14mm
Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  4.4    5.0 Volt
 Current Consumption (RX Mode)    5.5    mA
 Current Consumption (Shut Down Mode)    1    µA
 RF Sensitivity    -108    dBm
Max Data Rate   10   Kbit/s
RF Bandwidth 3dB   600   KHz
Operating Temperature Range -20   +80 °C



Pin Description

EN=0Volt ----> RX OFF    EN=5Volt ---->RX ON
Pads  Name  Description
 1  VCC  Power Supply
 2  GND  Ground
 3  ANT  Antenna
 7  GND  Ground
 11  GND  Ground
 12  VCC  Power Supply
 13  -----  Not used
 14  OUT Data Out
 15  EN  Enable
97 Items

Data sheet

Frequency
433.92MHz
Modulation
ASK (AM)
Supply Voltage
4.4 - 5.0 Volt
Consumption
5.5mA
Dimension
38 x 14mm
Compliance
ETSI EN 300 220
Sensitivity
-108dBm
