RCRX3-315

€4.50
Reference:

RCRX3-434

433.92MHz AM Superhet Receiver

RCRX3-434 is an AM superhet data receiver with PLL sinthesizer and crystal oscillator. ASK/OOK modulation. Standard European pin out . PTH Mounting . Very low cost version.

Volume discounts

Quantity Discount You Save
10 10% Up to €4.50
Qty:

Print

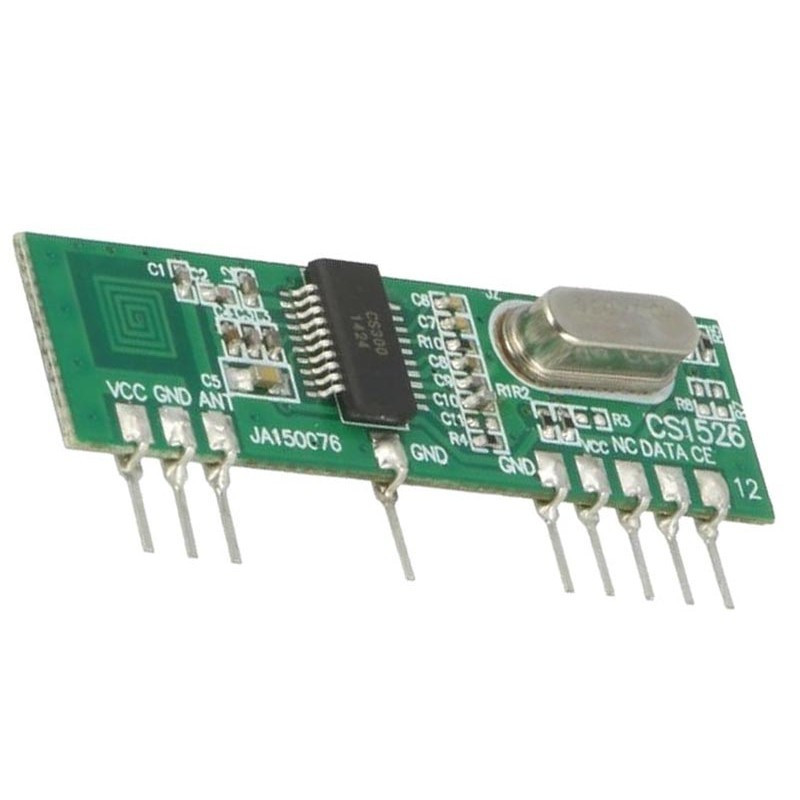

 315MHz AM Superhet Receiver

 RCRX3-315 is an AM superhet data receiver with PLL sinthesizer and crystal oscillator.  ASK/OOK modulation. Standard European pin out . PTH Mounting . Very low cost version.

Technical Characteristics MIN TYP MAX UNIT
Supply Voltage  2.2    5.2 Volt
 Current Consumption (RX Mode)    5.5    mA
 Current Consumption (Shut Down Mode)    1    µA
 RF Sensitivity    -108    dBm
 Frequency     315    MHz
Max Data Rate   10   Kbit/s
RF Bandwidth 3dB   300   KHz
Operating Temperature Range -20   +80 °C
Mechanical Dimensions  43.4 x 12mm



Pin Description


Pads  Name  Description
 1  VCC  Power Supply
 2  GND  Ground
 3  ANT  Antenna
 7  GND  Ground
 11  GND  Ground
 12  VCC  Power Supply
 13  -----  Not used
 14  OUT Data Out
 15  EN  Enable
44 Items

Data sheet

Frequency
315MHz
Modulation
ASK (AM)
Supply Voltage
2.5 - 5.0 Volt
Consumption
5.5mA
Dimension
43.4 x 12mm
Sensitivity
-108dBm
